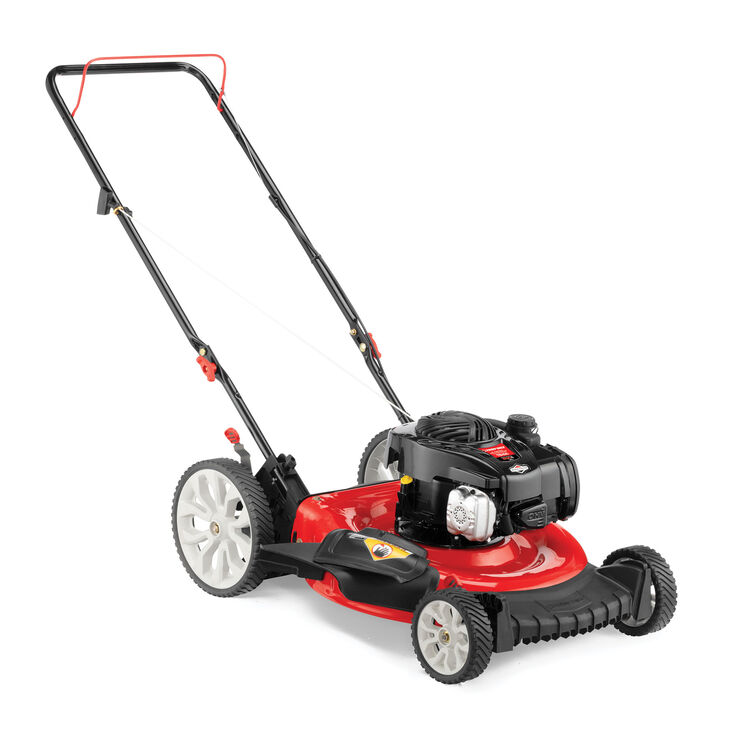

TB100 Push Lawn Mower
Yard work just got easier thanks to the Troy-Bilt® TB100. This walk behind lawn mower features a dependable 140cc Briggs & Stratton® engine that delivers reliable power to get the job done right and is equipped with Prime 'N Pull™ for easy starting. The TB100 has improved traction and maneuverability on hills and over rough spots in the lawn with 11" high rear wheels. A 21" steel deck provides durability that's built to last with a mulch kit included. Count on Troy-Bilt to help make yard work easier.
Documents and Guides
- 140cc Briggs & Stratton engine with Prime N Pull™ starting system for reliable, easy starting
- 11" high rear wheels provide added traction to make navigating uneven terrain easier.
- Included mulch kit helps maintain a healthy lawn
- Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in.
TB100 Push Lawn Mower Features

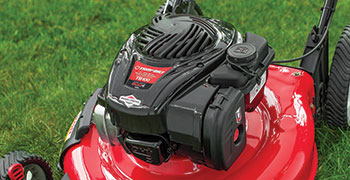

Easy Starting
Briggs and Stratton engine with Prime N Pull™ E-Z starting system for reliable, easy starting
High Rear Wheels
Pushes more easily over rough spots and up hills with 11-in high rear wheels
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easy Clean Up
1.9 bushel rear bag collects grass clippings for easy clean up or composting.
Maintain a Healthy Lawn
Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Side Discharging
Side discharge chute comes with handy, built-in clip to attach to handle when not in use
Confidence
Backed with a 2-year limited warranty for peace of mind
Specs & Maintenance
Engine
- Engine Brand Briggs & Stratton®
- Engine Model 500e
- Engine Model Number 09P602-0139
- Engine Displacement 140cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke Primer
Drive System
- Drive System Push
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash No
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System N/A
- Mulch Plug Integrated
- Discharge Location Side
Warranty
- Warranty 2-year limited
- Commercial Warranty No
Controls
- Handle Adjustable Loop
- Drive Controls N/A
Wheels
- Tread Pattern S-Wave
- Front Wheels 7 in
- Rear Wheels 11 in
- Bearing Type Poly Bushing
Additional Specifications
- Model Number 11A-B0BL723
Grass Collector
- Grass Bag Capacity N/A
- Bagger Type N/A
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 11AB0BL723 | MANL:OPER:BILING:11X:CONSOLIDA | ||
| MANL:OPER:BILING:11X:CONSOLIDA | 769-17232 | Download | |
| MANL:OPER:BILING:11X:GEN:DIGES | 769-22910A | Download | |
| MANL:OPER:BILING:11X:GEN:DIGES | 769-22910B | Download | |
| MANL:OPER:FRENCH:11X:CONSOLIDA | 769-17232_FR | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-26316 | Download | |
| SHEET:SUP:BILING:11X:12XTROY | 769-23230 | Download | |
| SHEET:SUP:BILING:11X:TROY:XP | 769-17730 | Download | |
| SHEET:SUP:FRENCH:11X:12XTROY | 769-23230_FR | Download | |
| SHEET:SUP:FRENCH:11X:TROY:XP | 769-17730_FR | Download |
