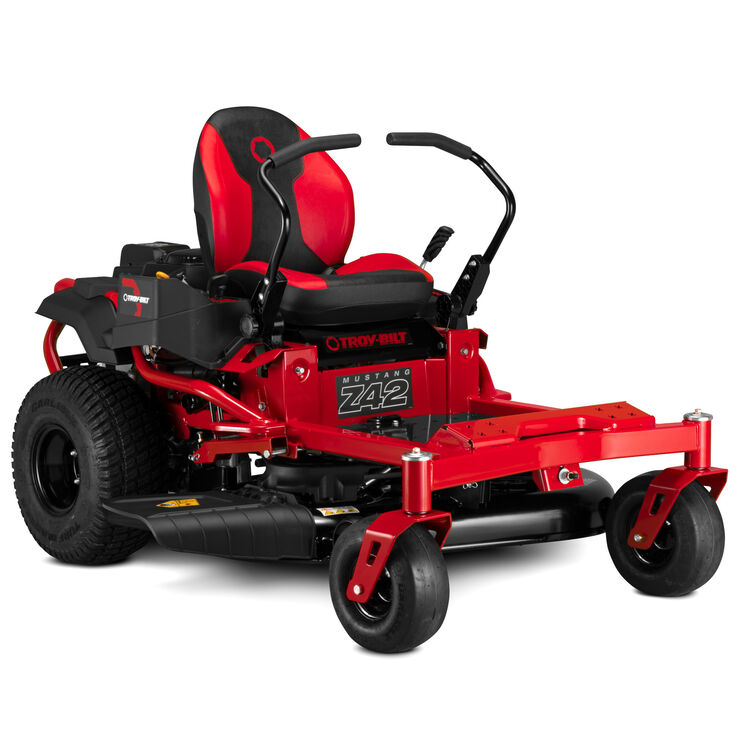

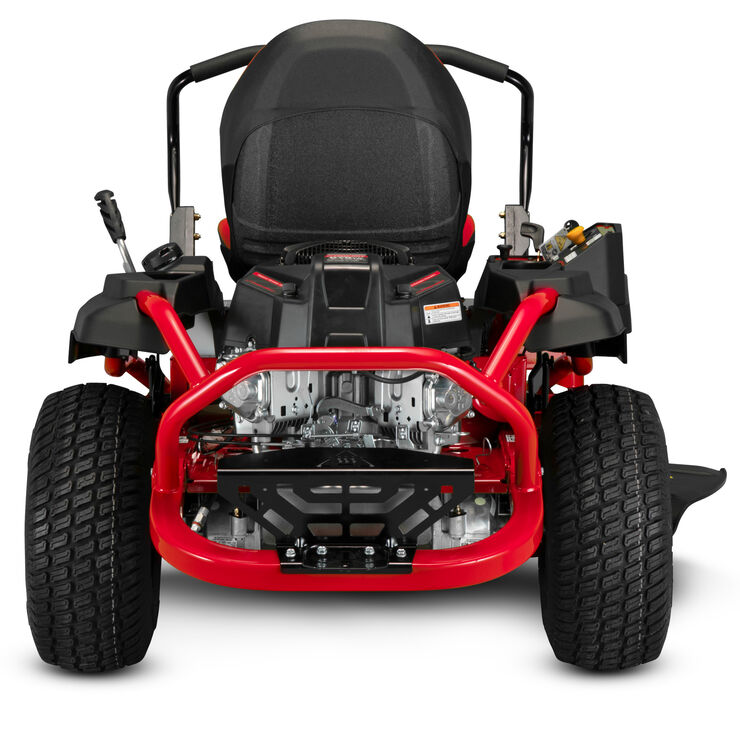

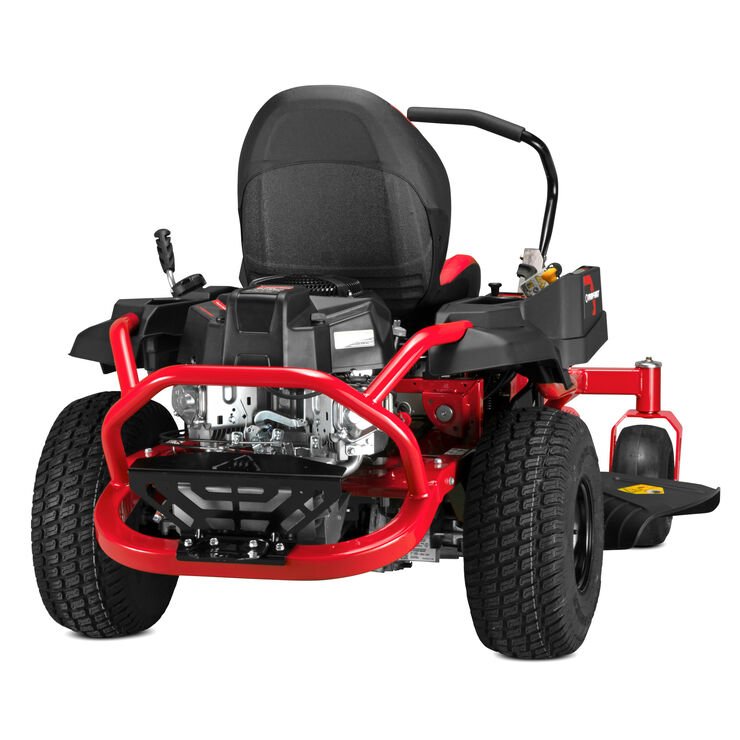

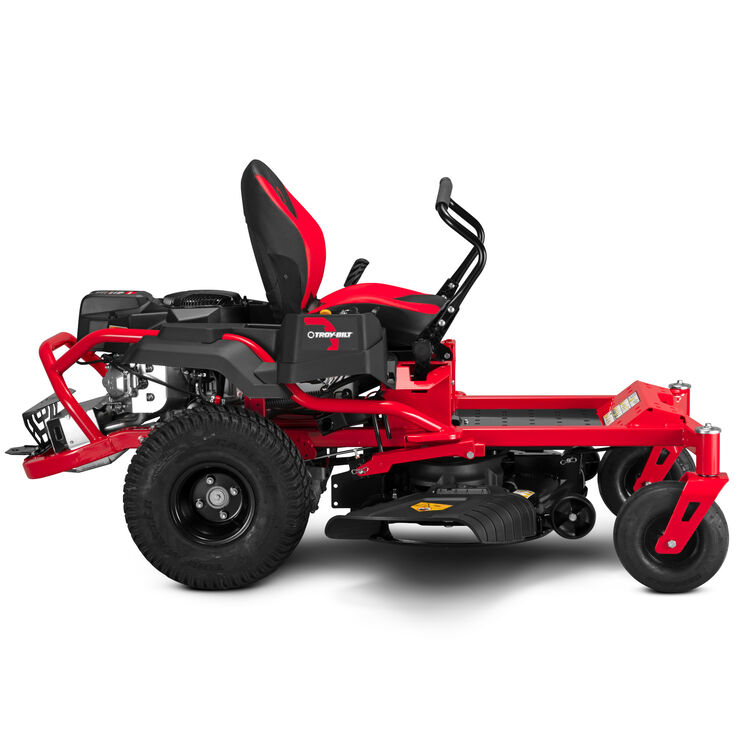

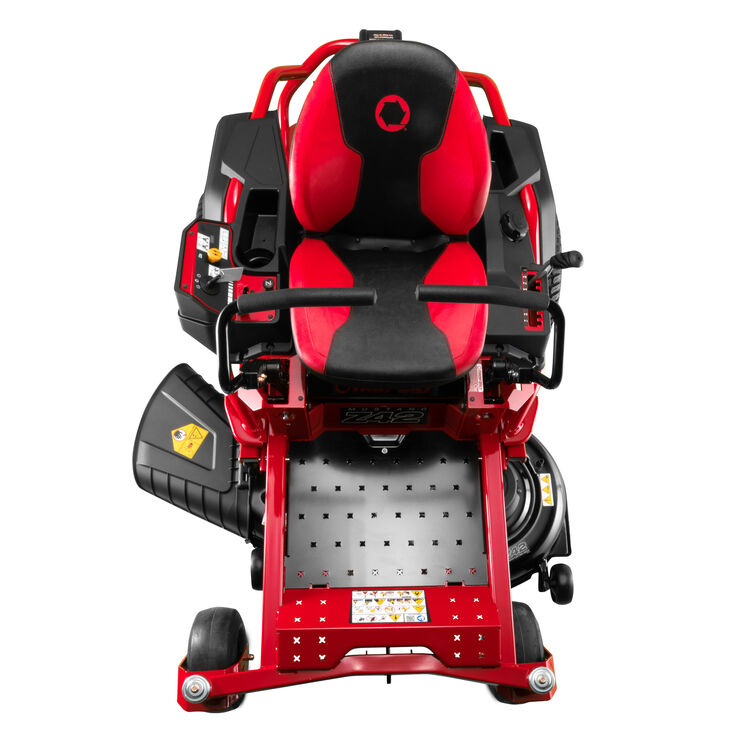

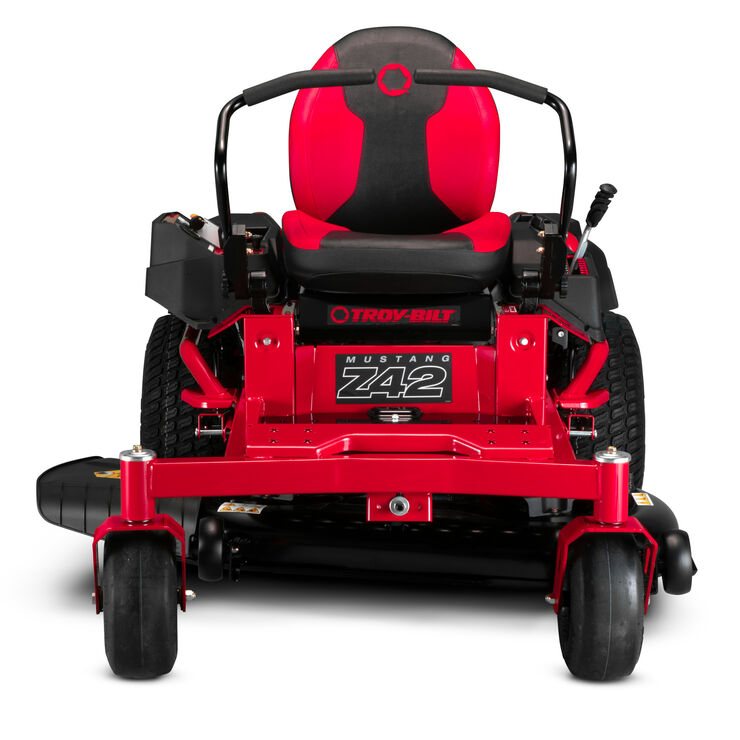

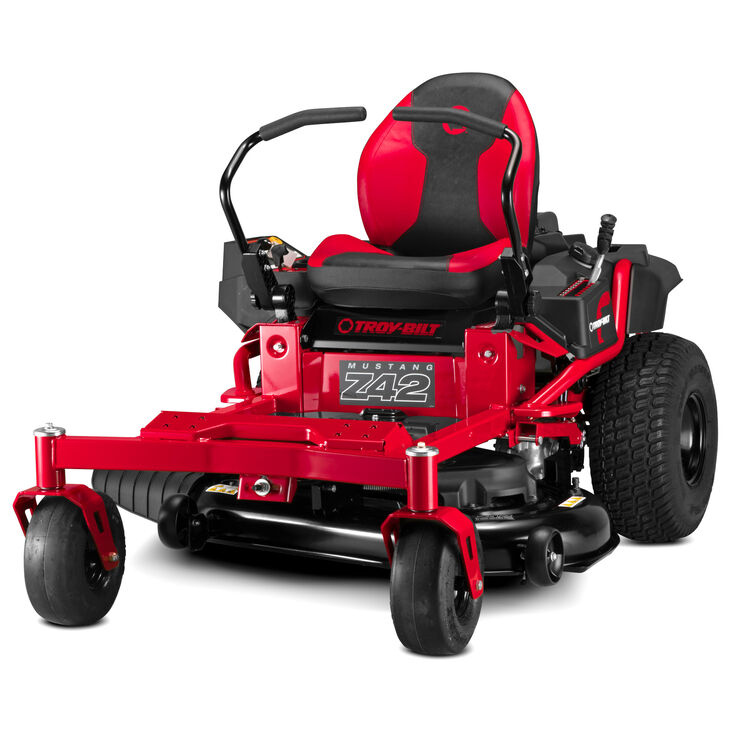

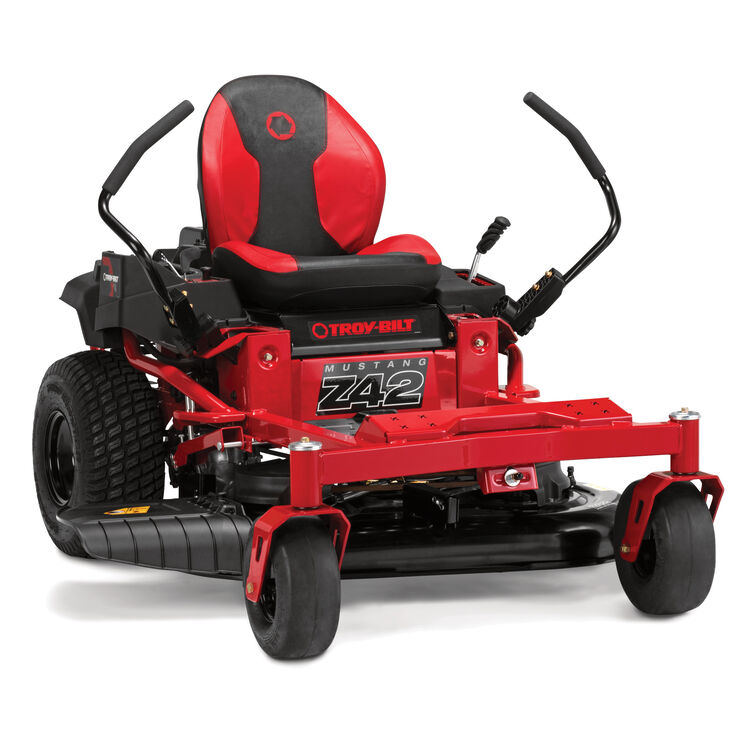

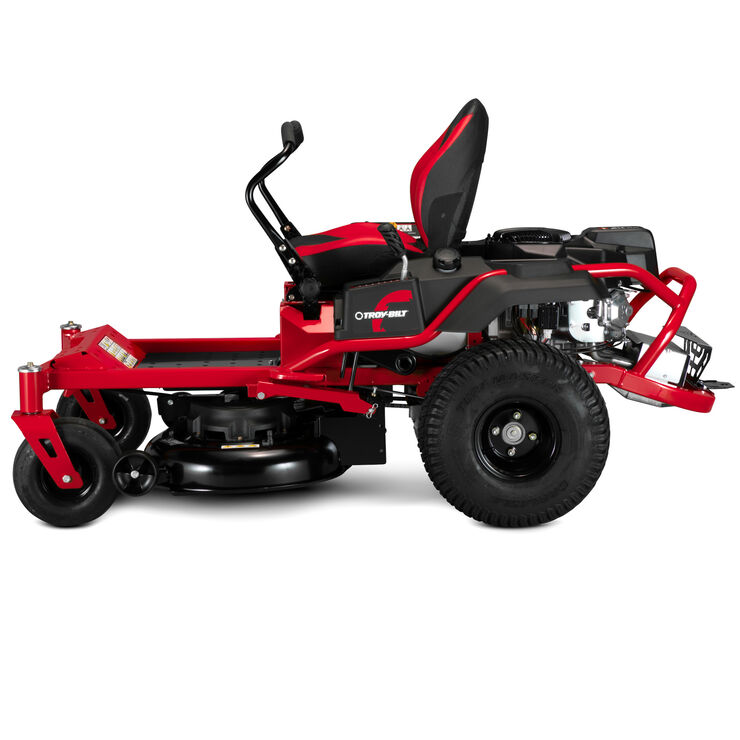

Mustang Z42 Zero-Turn Rider
Quickly mow large areas with ease thanks to the Troy-Bilt Mustang™ Z42. This zero-turn riding lawn mower provides elite durability and dependable performance in rugged conditions thanks to its heavy-duty, fully welded frame. A 42-in rugged steel deck features with anti-scalp wheels to prevent turf damage. Dual hydrostatic transmissions provide a true zero-turn performance with quicker mow times and effortless mobility. A powerful 725cc twin-cylinder Kohler engine delivers reliable power and a quieter, more balanced performance with less vibration. A high back seat and padded lap bars allow you to ride in comfort and enjoy your cut. With a 3-year limited warranty and limited lifetime frame warranty, you can count on Troy-Bilt to help make yard work easier.
Documents and Guides
- Powerful 22 HP/725cc twin-cylinder Kohler engine delivers quieter, more balanced performance with less vibration
- Limited lifetime warranty on the frame and a 3-year limited warranty on the remaining components offers peace of mind
- Heavy-duty, full length, fully welded, tubular frame is built for added strength and durability in the yard
- 42-in steel deck ,with anti-scalp deck wheels to prevent turf damage, delivers a clean, even cut. Mulch kit (sold separately) helps maintain a healthier lawn
- Dual hydrostatic transmission delivers true zero turn performance for quicker mow times and improved maneuverability
- Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls

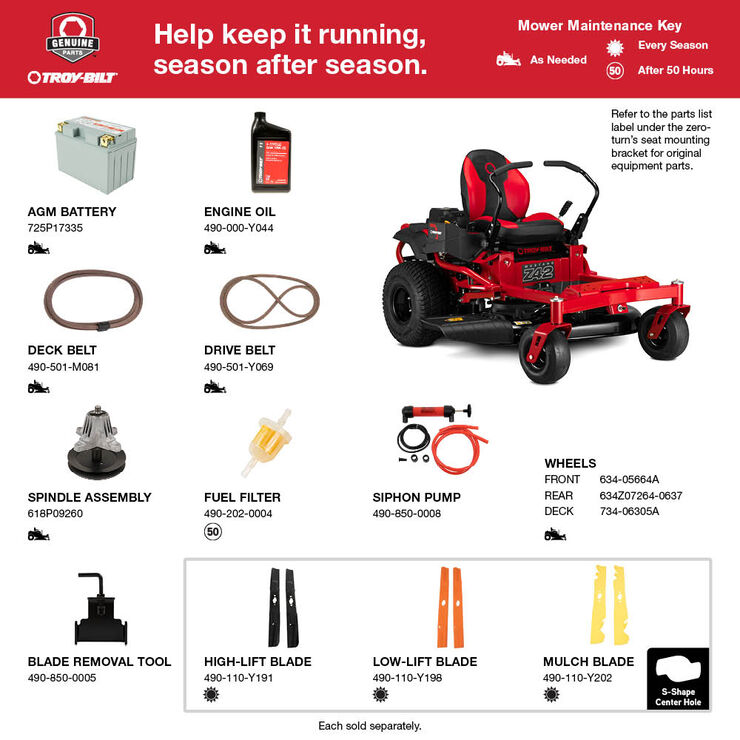

Attachments & Accessories
Mustang Z42 Zero-Turn Rider Features
Heavy-Duty Frame
Heavy-duty, full length, fully welded, 2-in tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty.
Increased Comfort
Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls.
Safety First
Lap bar controls have an integrated parking brake to safely and quickly stop the mower.
Keep Your Yard and Deck Clean
Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings
Pride
Headquarted in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT725
- Engine Displacement 725cc
- Engine Output 22HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gallons (13.25 Litres)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qts. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear™ EZT-2200
- Forward Speed 7 MPH / 11.3 Km/H
- Reverse Speed 3.5 MPH / 5.6 Km/H
- Drive System Hydrostatic
- Transmission Housing Cast aluminum
Cutting Deck
- Deck Cutting Width 42 in
- Deck Wash Yes
- Deck Material 13-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Stamped
- Blade(s) 2
- Deck Lift Foot pedal
- Cutting Height Range 1.25"-3.75"
- Anti-Scalping 2 gauge wheels
- Deck Positions 8
Warranty
- Warranty 3-year limited
- Frame Warranty Lifetime Limited
- Deck Shell Warranty 3-year limited
- Commercial Warranty No
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Comfort
- Seat Type 18" high back
- Armrests No
- Seat Adjustment Knob
Wheels
- Rear Tires 20''x8-8''
- Front Tires 11''x6''-5''
- Tire Tread Turf Master / Multi Trac
Additional Specifications
- Hour Meter No
- Mulch Kit Available separately
- Headlight(s) No
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17ARFACSA66
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower *As rated by engine manufacturer
Model | Manual | Form Number | |
|---|---|---|---|
| 17ARFACSA66 | MANL:OPER:TRILING:RZ19:DIGEST | ||
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609B | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609C | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26345 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26642 | Download |
