24-in. 243cc 2-Stage Gas Snow Blower
To handle winter, you need power and convenience. The 24-in. 2-stage snow blower is built to help you clear more snow, season after season. The 24-in. housing allows your driveway to be cleared with ease and the 12-in. serrated steel augers cut through heavy snow. The Just One Hand® operation lets you guide your Troy-Bilt snow blower with literally one hand, allowing you to adjust the chute, speed and other controls without disengaging the drive. The Touch N’ Turn™ trigger-controlled power steering and heated grips allow you to quickly adjust your direction with one finger while keeping your hands warm.
Documents and Guides
- 243cc Troy-Bilt OHV electric-start engine delivers reliable power in all weather conditions
- 24 in. clearing width with 12 in. serrated steel augers helps break up ice and snow for easier removal
- 15 in. x 5 in. X-trac tires offer traction and easier steering over snowy areas
- 4-Year limited warranty/ lifetime warranty on chute
- Touch N’ Turn™ trigger-controlled power steering allows you to quickly adjust your direction with one finger
- Reinforced steel housing provides durability and ruggedness for years of use
Attachments & Accessories
![Shear Pin Kit, .25 x 1.5"](https://www.troybilt.ca/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dwacd1f709/products/Attachments_Accessories/OEM-738-04124_2.jpg?sw=280&sh=280&sm=fit "Shear Pin Kit, .25 x 1.5"")
24-in. 243cc 2-Stage Gas Snow Blower Features
Strong Warranty
Backed by a strong 4-year limited warranty and lifetime polymer chute warranty for peace of mind.

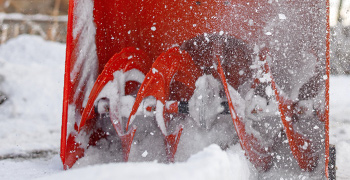

Two-Stage Technology
Two-stage technology with serrated steel augers and impeller plows through deeper, heavier snow faster than a single-stage snow blower.
Electric Start
Electric start allows you to start the machine with the push of the button, eliminating the need to pull-start a cold engine.
Self-Propelled Drive
Self-propelled drive with choice of six forward and two reverse speeds.
Touch N’ Turn™ Power Steering
Touch N’ Turn™ trigger-controlled power steering allows you to quickly adjust your direction with one finger.
Remote Pitch Control Lever
Remote pitch control lever allows the operator to change the height of snow discharge from the dashboard.
Heated Hand Grips
Heated grips provide extra comfort in cold weather.
In-Dash Headlight
In-dash headlight provides improved visibility in low-light conditions.
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Displacement 243cc
- Starter Type Push Button Electric Start / Pull Start
- Fuel Tank Capacity 2 quarts US/ 1.9 L
- Engine Oil Capacity 20 oz
Drive System
- Drive System All wheel drive
Warranty
- Warranty 4-Year limited warranty/ lifetime warranty on chute
Controls
- Handle Grip(s) Heated grips
- Pitch Control Remote
- Chute Rotation 200 degrees
- Chute Control Remote side-to-side chute control
- Single-Hand Operation Standard / clutch lock
- Steering Control Power Steering
- Drive Type Self-Propelled
Power and Performance
- Clearing Width 24"
- Intake Height 21"
- Number of Stages 2
Dimensions
- Auger Diameter 12"
- Impeller Diameter 12"
Additional Specifications
- Headlight(s) In-dash headlight
- Shave Plate Steel
- Skid Shoes Standard Polymer
- Drift Cutters Standard, Tool-less
- Chute Material Polymer
- Recommended Oil Type 5W-30 (Included)
- Model Number 31AM5CP2563
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 31AM5CP2563 | MAN:OWNR:ENGINE 179,208_243_27 | ||
| MAN:OWNR:ENGINE 179,208_243_27 | 769-15430 | Download | |
| MANL:OPER:BILING:179/208/272/2 | 769-25211 | Download | |
| MANL:OPER:BILING:31X:5X/6X/8X: | 769-24536 | Download | |
| MANL:OPER:ENGL:5XX_6XX_8XX SNO | 769-11740C | Download | |
| MANL:OPER:ENGL:5XX_6XX_8XX SNO | 769-22282 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-17172 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUPP:WARR/PARTS:TROY 5XX | 769-16050 | Download | |
| SHEET:SUPP:WARR/PARTS:TROY 5XX | 769-22296 | Download |
