Super Bronco Garden Tiller
- The Troy-Bilt Super Bronco CRT is a rear-tine tiller with the power to break through hard-packed soils with counter-rotating tines.
- 16-inch tilling width makes the Bronco CRT ideal for any size garden.
- 10-inch Bolo™ tines with depth stake for up to 6-inches of tilling depth.
- A 208cc OHV Troy-Bilt engine gives you plenty of power to turn over large amounts of soil.
- Just One Hand™ operation allows the tiller to be guided with literally one hand thanks to a well-balanced and easy to control design.
- Gear drive transmission with 1 forward speed helps keep tiller moving through soil.
- Power reverse allows for flexible handling around rocks and other obstacles.
- Wider 1-inch handles provide greater stability.
- 13-inch agricultural tires enhance traction and stability.
- The included front bumper protects your tiller’s engine.
- Tiller can also be used to help prepare areas for seeding and mixing compost in the pile or into your soil.
- Troy-Bilt has a limited lifetime transmission warranty on cast iron gear casting and precision cut bronze gears.
- 2-year limited warranty on other components for peace of mind.
Super Bronco Garden Tiller Features

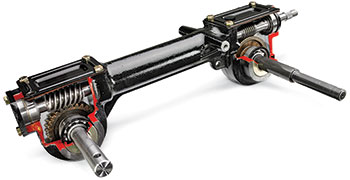

Heavy Duty Transmission
A cast iron gear casing and precision cut bronze gears in the heavy-duty transmission provide extra strenth and durability, plus they're covered with a limited lifetime warranty
Just One Hand Operation
Guide the tiller with just one hand thanks to a well-balanced and easy to control design
Bolo Tine Design
Unique, bolo-designed tines alternatly slice, chop and turn soil with ease, while thoroughy and deeply mixing soil to create finely textured, well-aerated seedbeds
Rear Tine Tillers
These tillers are best for breaking new ground and powering through hard-packed, challenging soil. Best for med-large size garden beds.

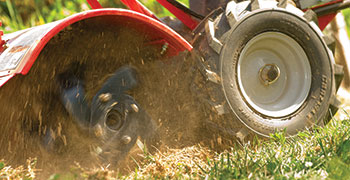

Counter Rotating Tines
By rotating in the opposite direction as the wheels, counter rotating tines break up hard-packed or clay soils more easily than forward rotating tines
Get out of tight spots and around rocks and other obstacles with the flexible handling of power reverse
Specs & Maintenance
- Engine Brand Troy-Bilt®
- Engine Displacement 208cc
- Starter Type Standard Recoil
- Engine Oil Capacity 20 oz
- Transmission Cast iron transmission with bronze gear-drive
- Handle Adjustable Padded Loop
- Dimensions L/W/H 54"(L) x 23.65"(W) x 26"(H)
- Weight (approx.) 184 lbs
- Recommended Oil Type SAE30 (included)
- Model Number 21D-65M8766
- Forward/Reverse Speeds 1 forward / 1 reverse, neutral
- Tilling Depth Adjustable up to 6"
- Tilling Width 16"
- Tine Rotation Direction Counter-rotating tines
- Tines 10" steel vertical tines
- Wheels 13" x 5" pneumatic Ag tread
- Warranty 2-Year limited residential warranty / lifetime warranty on gearbox
Tiller Tine Specifications
- Tine Rotation Direction Counter-rotating tines
|MANL:OPER:BILING:CONS SF CRT||769-18770||Download|
|MANL:OPER:BILING:CONS SF CRT||769-18770A||Download|
|MANL:OPER:BILING:TB SF CRT||769-09541||Download|
|MANL:OPER:BILING:TB SF CRT||769-10478||Download|
|MANL:OPER:BILING:TB SF CRT||769-11267||Download|
|MANL:OPER:BILING:TB SF CRT||769-12041||Download|
|MANL:OPER:FRENCH:CONS SF CRT||769-18770A_FR||Download|
|SHEET:SUPP:WARR/PARTS:TB RT CR||769-18870||Download|
|SHEET:SUPP:WARR/PARTS:TB RT CR||769-18870A||Download|
|SHEET:SUPP:WARR/PARTS:TB RT TI||769-12045||Download|
