Pro-Line FRT Garden Tiller
Forward rotating rear tine rototiller with a 160cc Honda® GX OHV engine and 16" tilling width.
Troy-Bilt's Pro-Line FRT rear-tine rototiller works like a pro because it's designed for your large scale or commercial groundbreaking applications. A professional strength, mid-size tiller, the Pro-Line FRT offers unmatched durability and performance in gardens up to 1,500 square feet.
- 160cc Honda® GX OHV engine
- 16" tilling width
- Adjustable tilling depth up to 7"
- 13" ag tires for greater maneuverability
- Factory-installed protective front bumper included
- Power reverse helps you back out of tight corners and dense soil
- Forward-rotating tines for premium garden soil preparation
- cast-iron encased transmission with bronze gear drive that provides extra strength and durability
Pro-Line FRT Garden Tiller Features

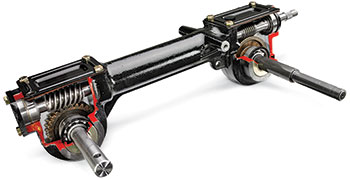

Heavy Duty Transmission
A cast iron gear casing and precision cut bronze gears in the heavy-duty transmission provide extra strenth and durability, plus they're covered with a limited lifetime warranty

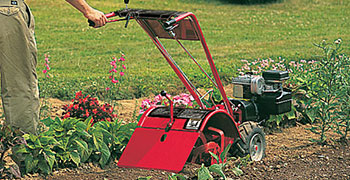

Just One Hand Operation
Guide the tiller with just one hand thanks to a well-balanced and easy to control design
Bolo Tine Design
Unique, bolo-designed tines alternatly slice, chop and turn soil with ease, while thoroughy and deeply mixing soil to create finely textured, well-aerated seedbeds
Rear Tine Tillers
These tillers are best for breaking new ground and powering through hard-packed, challenging soil. Best for med-large size garden beds.
Forward Rotating Tines
These tines rotate in the same direction as the wheels and are best in established beds for premium soil preparation.

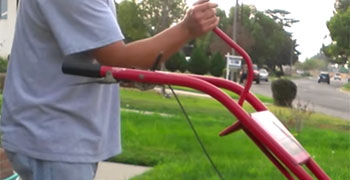

Get out of tight spots and around rocks and other obstacles with the flexible handling of power reverse
Specs & Maintenance
- Engine Brand Honda®
- Engine Model GX OHV
- Engine Displacement 160cc
- Starter Type Standard Recoil
- Engine Oil Capacity 16 oz
- Transmission Cast iron transmission with bronze gear-drive
- Speed 1 Forward with power reverse
- Protection Yes
- Handle Adjustable Plow Style
- Handle Grip(s) Hand Grip
- Dimensions L/W/H 56.75"(L) x 23"(W) x 28.25"(H)
- Weight (approx.) 200 lbs
- Recommended Oil Type 10W30 (included)
- Model Number 21A-495B766
- Rear Shield Rear Tine Shield
- Forward/Reverse Speeds 1 forward speed with power reverse
- Tilling Depth Adjustable up to 7"
- Tilling Width 16"
- Tine Rotation Direction Forward-rotating
- Tines 12" diameter Bolo
- Wheels 13" x 5" pneumatic Ag tread
- Warranty 2-Year limited manufacturer's warranty - refer to online operator's manual for exclusions. Limited lifetime warranty on transmission. 2-year warranty on engine.
Tiller Tine Specifications
- Tine Rotation Direction Forward-rotating
|21A495B766||MANL:OPER:ENGL:TB PONY PONY ES|
|MANL:OPER:ENGL:TB PONY PONY ES||769-11180||Download|
|MANL:OPER:ENGL:TB PONY PONY ES||769-11180A||Download|
|MANL:OPER:ENGL:TB PONY PONY ES||769-11180B||Download|
|MANL:OPER:ENGL:TB PONY PONY ES||769-11180C||Download|
|MANL:OPER:ENGL:TB PONY PONY ES||769-24550||Download|
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Cub Cadet, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Cub Cadet is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
