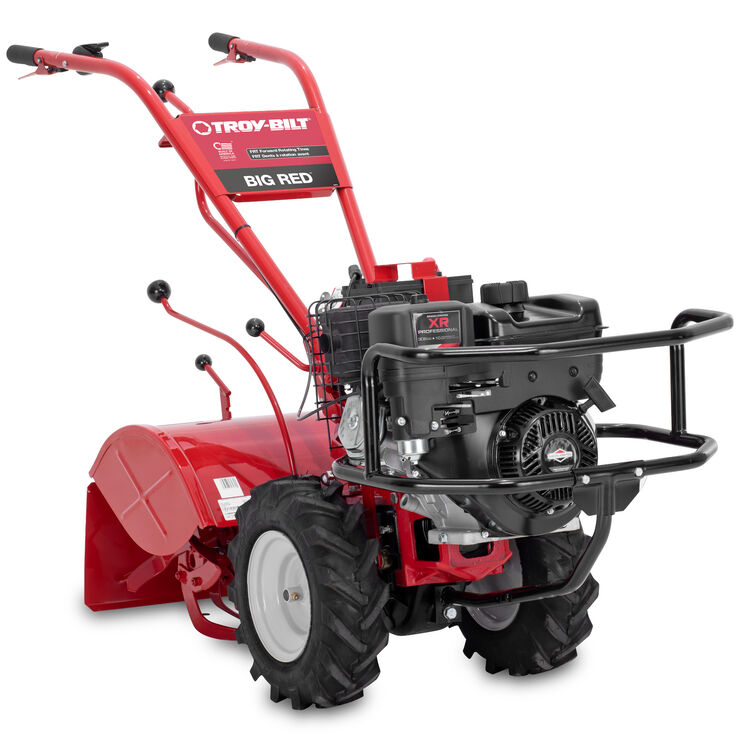

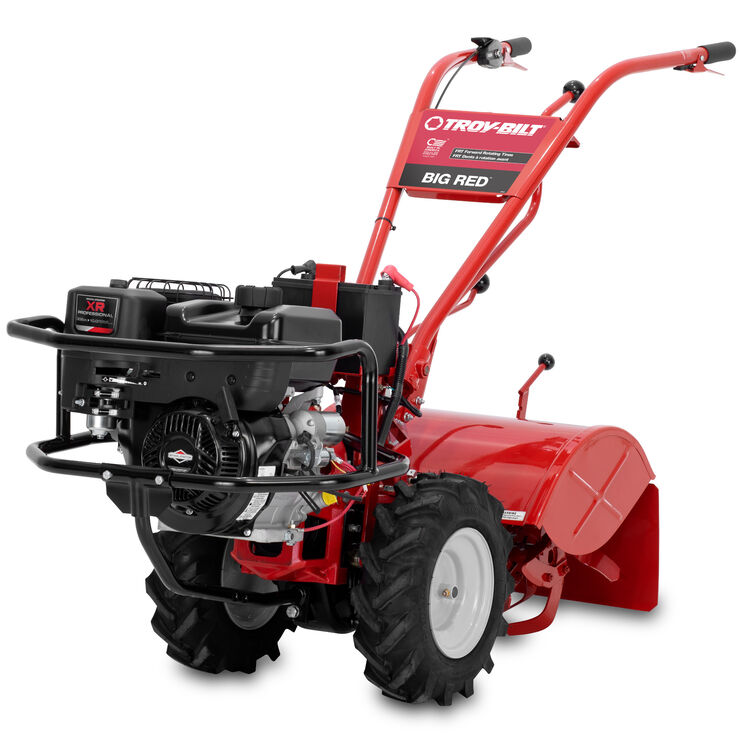

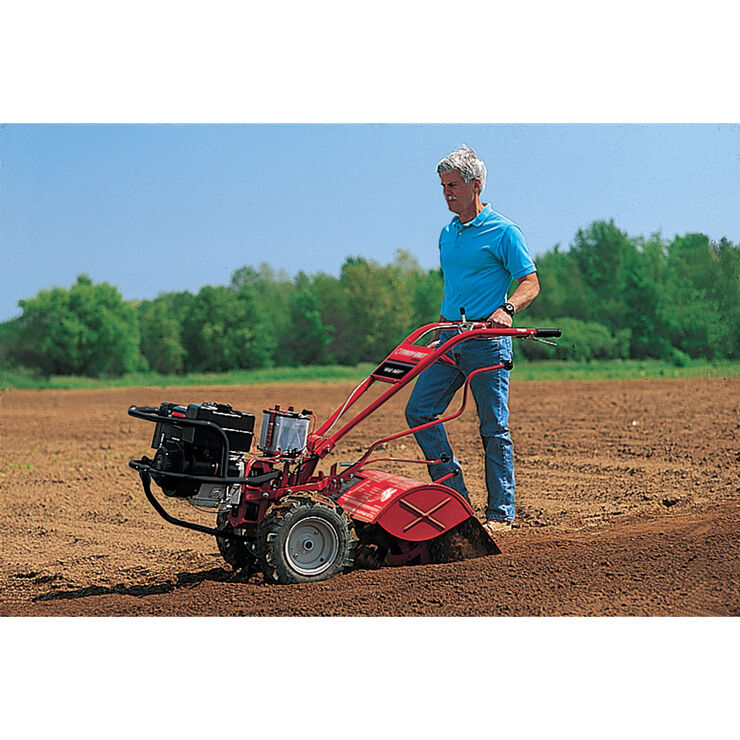

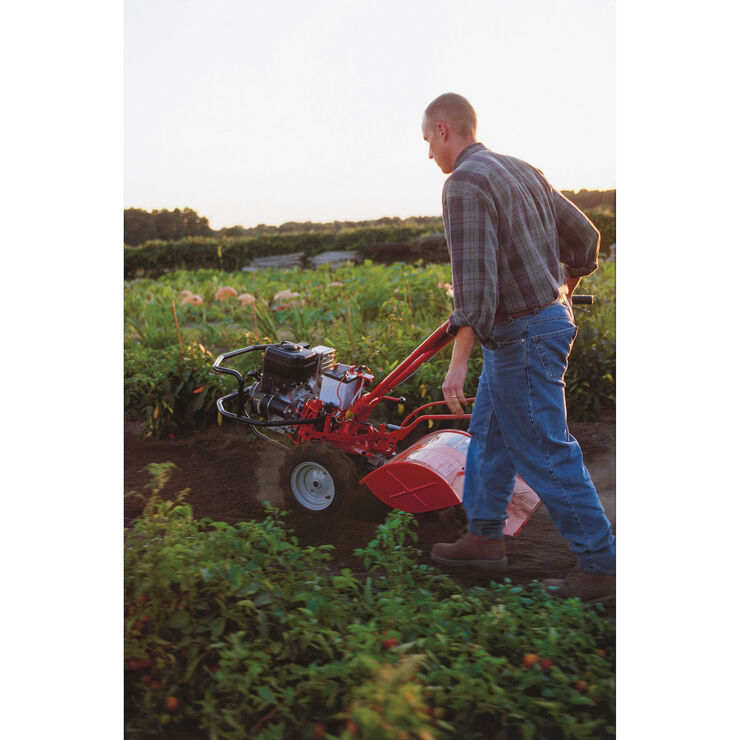

Big Red Garden Tiller
Forward rotating rear tine tiller with 305cc Briggs & Stratton® OHV engine and 20" tilling width.
The Big Red is the flagship of the Troy-Bilt fleet of rototillers and is fully equipped for the heaviest-duty jobs in gardens over 2,500 square feet. Perfect for soil preparation and groundbreaking, the Big Red tiller has the power and durability to tackle all of your garden challenges.
- 306cc Briggs & Stratton OHV 1450 Series engine
- Standard electric start for easiest starting
- 12" tine diameter
- Accepts a wide variety of optional attachments
- Forward-rotating tines for premium garden soil preparation
- 4 forward, 1 neutral, and 2 reverse speeds
- Adjustable tilling depth up to 7"

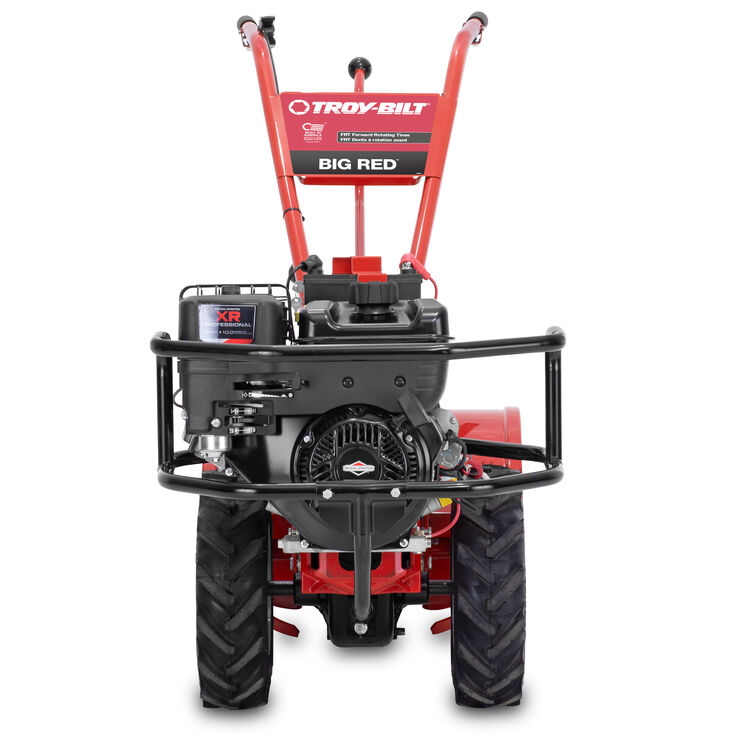

- Factory-installed full wrap-around front bumper included
- Full-sided tine shields for operator protection
Big Red Garden Tiller Features
Heavy Duty Transmission
A cast iron gear casing and precision cut bronze gears in the heavy-duty transmission provide extra strenth and durability, plus they're covered with a limited lifetime warranty
Just One Hand Operation
Guide the tiller with just one hand thanks to a well-balanced and easy to control design

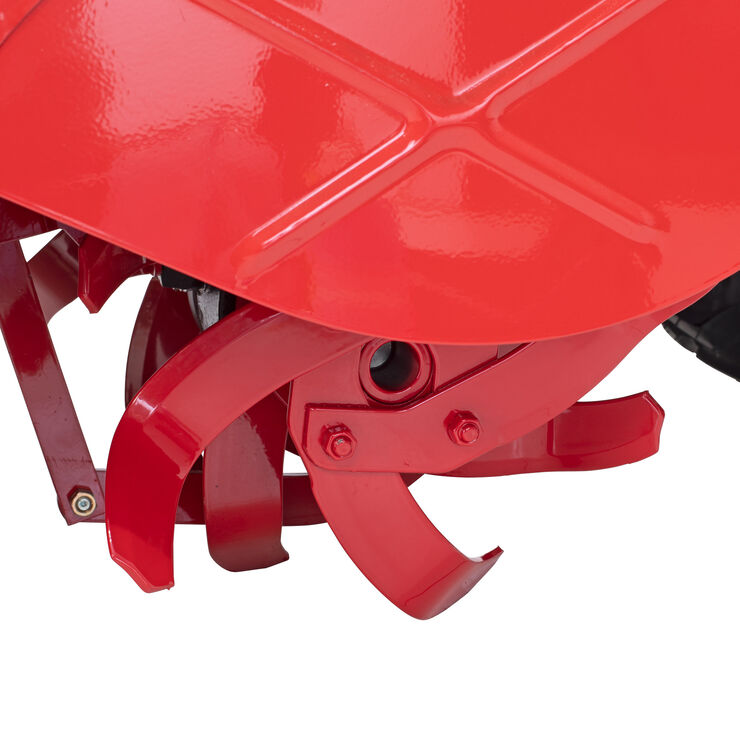

Bolo Tine Design
Unique, bolo-designed tines alternatly slice, chop and turn soil with ease, while thoroughy and deeply mixing soil to create finely textured, well-aerated seedbeds
Rear Tine Tillers
These tillers are best for breaking new ground and powering through hard-packed, challenging soil. Best for med-large size garden beds.
Forward Rotating Tines
These tines rotate in the same direction as the wheels and are best in established beds for premium soil preparation.
Pride
Headquarted in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Power Reverse
Get out of tight spots and around rocks and other obstacles with the flexible handling of power reverse
Specs & Maintenance

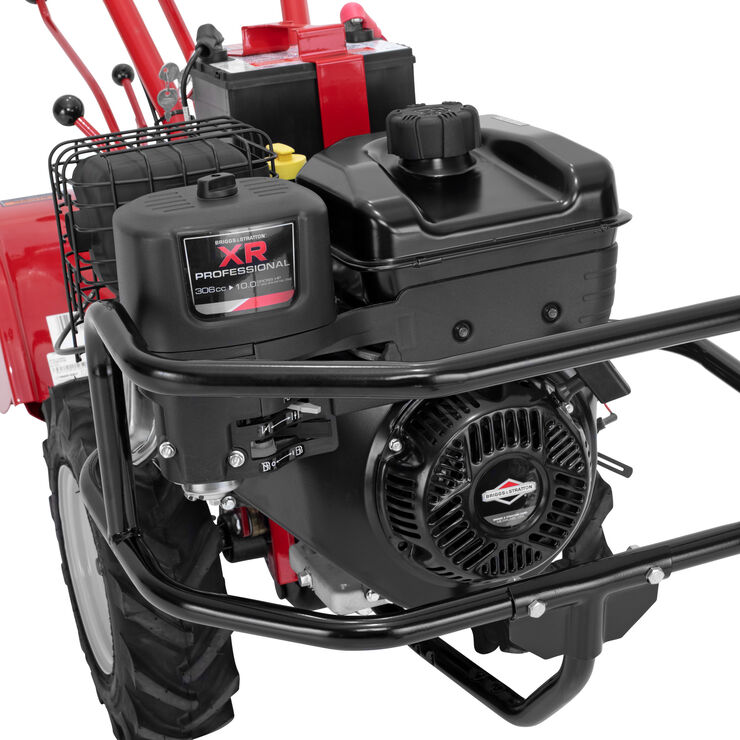

Engine
- Engine Brand Briggs & Stratton®
- Engine Model XR1450 Professional
- Engine Model Number 19N137-0238
- Engine Displacement 306cc
- Engine Output 14.5HP
- Starter Type Electric and Recoil
- Engine Oil Capacity 26oz
Drive System
- Forward/Reverse Speeds Four forward / Two reverse
- Drive System Bronze Gear
- Transmission Housing Cast Iron
Warranty
- Warranty 2-year limited
- Commercial Warranty No
- Transmission Warranty Lifetime limited
Chassis
- Bumper Yes
Controls
- Handle Adjustable Plow with Swing Out
- Handle Grip(s) Standard
Additional Specifications
- Model Number 21AE682WB66
Specifications
- Rear Shield Yes
- Side Shield Non-Adjustable
- Tilling Depth 7"
- Tilling Diameter 12"
- Tilling Width 20"
- Tine Rotation Direction Forward-rotating
- Tines Bolo
- Wheels 16" x 4" Pneumatic
Tiller Tine Specifications
- Tine Rotation Direction Forward-rotating
- Tine Location Rear
- Tilling Diameter 12"
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
