Big Red Garden Tiller
Forward rotating rear tine tiller with 305cc Briggs & Stratton® OHV engine and 20" tilling width.
The Big Red is the flagship of the Troy-Bilt fleet of rototillers and is fully equipped for the heaviest-duty jobs in gardens over 2,500 square feet. Perfect for soil preparation and groundbreaking, the Big Red tiller has the power and durability to tackle all of your garden challenges.
- 306cc Briggs & Stratton OHV 1450 Series engine
- Standard electric start for easiest starting
- 12" tine diameter
- Accepts a wide variety of optional attachments
- Forward-rotating tines for premium garden soil preparation
- 4 forward, 1 neutral, and 2 reverse speeds
- Adjustable tilling depth up to 7"
- Factory-installed full wrap-around front bumper included
- Full-sided tine shields for operator protection
- Troy-Bilt horse 20-in rear-tine tiller features an extra-wide tilling path to till large areas faster, and aids in seeding preparation and mixing compost in the pile or into your soil
Big Red Garden Tiller Features

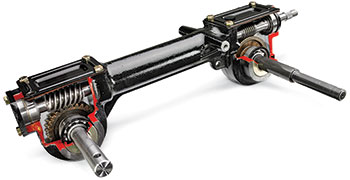

Heavy Duty Transmission
A cast iron gear casing and precision cut bronze gears in the heavy-duty transmission provide extra strenth and durability, plus they're covered with a limited lifetime warranty

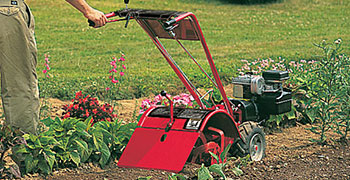

Just One Hand Operation
Guide the tiller with just one hand thanks to a well-balanced and easy to control design

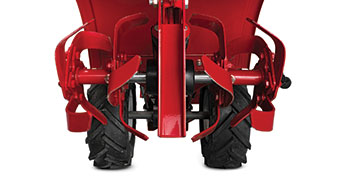

Bolo Tine Design
Unique, bolo-designed tines alternatly slice, chop and turn soil with ease, while thoroughy and deeply mixing soil to create finely textured, well-aerated seedbeds

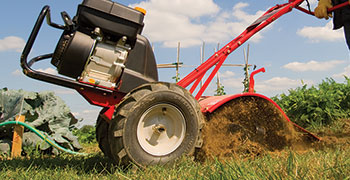

Rear Tine Tillers
These tillers are best for breaking new ground and powering through hard-packed, challenging soil. Best for med-large size garden beds.

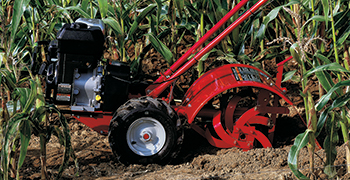

Forward Rotating Tines
These tines rotate in the same direction as the wheels and are best in established beds for premium soil preparation.
Get out of tight spots and around rocks and other obstacles with the flexible handling of power reverse
Specs & Maintenance
- Engine Brand Briggs & Stratton®
- Engine Model OHV 1450 Series
- Engine Displacement 306cc
- Starter Type Electric start
- Engine Oil Capacity 26 oz
- Transmission Cast iron transmission with bronze gear-drive
- Speed 4 Forward / 1 Neutral / 2 Reverse
- Warranty 2-Year limited manufacturer's warranty - refer to online operator's manual for exclusions. Limited lifetime warranty on transmission. 2-year warranty on engine.
- Protection Yes
- Handle Adjustable Plow Style
- Handle Grip(s) Hand Grip
- Dimensions L/W/H 56"(L) x 22.38"(W) x 27.75"(H)
- Weight (approx.) 389 lbs
- Recommended Oil Type SAE30 (included)
- Model Number 21AE682W766
- Rear Shield Rear Tine Shield
- Side Shield full sided tine shield
- Forward/Reverse Speeds 4 forward / 1 neutral / 2 reverse
- Tilling Depth Adjustable up to 7"
- Tilling Width 20"
- Tine Rotation Direction Forward-rotating
- Tines 12" diameter Bolo
- Wheels 16" x 4" pneumatic Ag tread
Tiller Tine Specifications
- Tine Rotation Direction Forward-rotating
