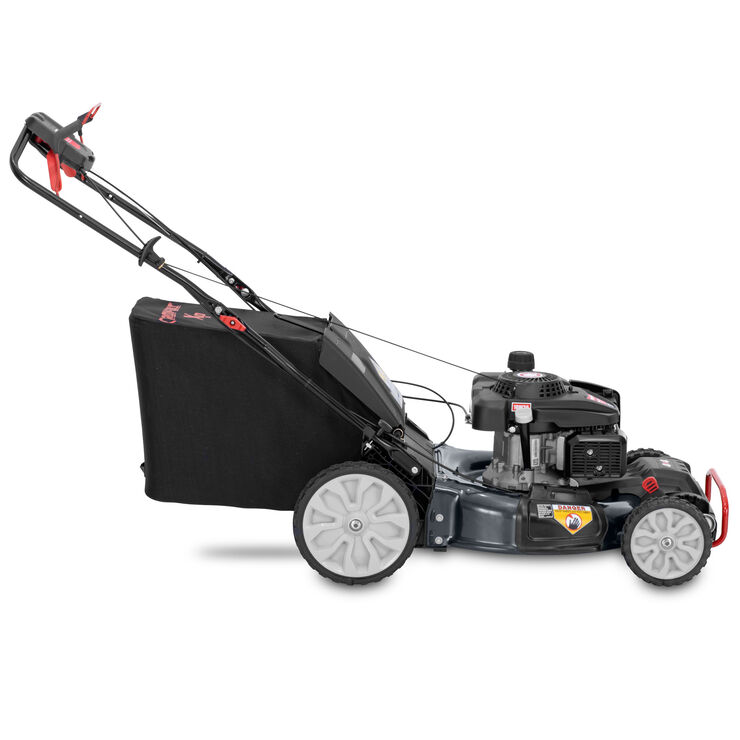

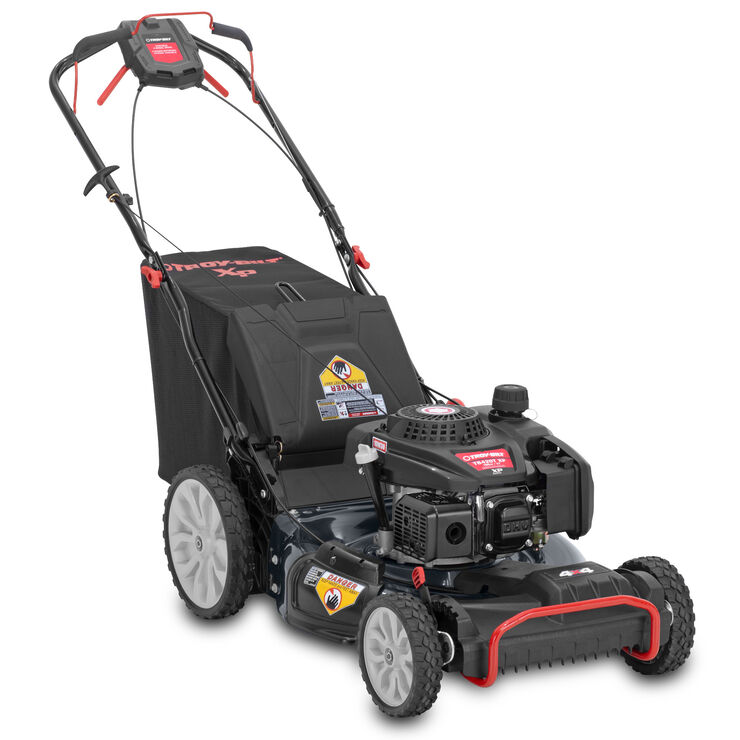

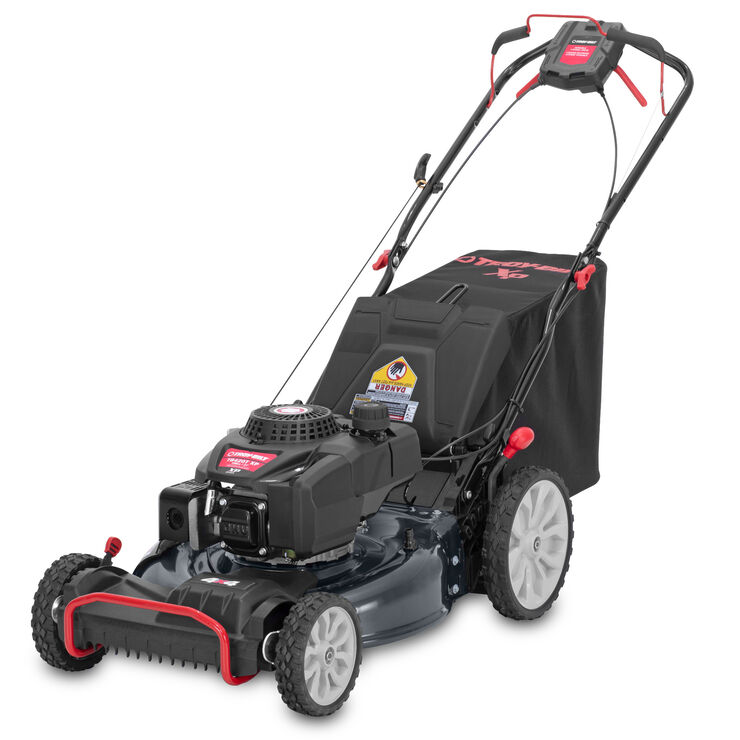

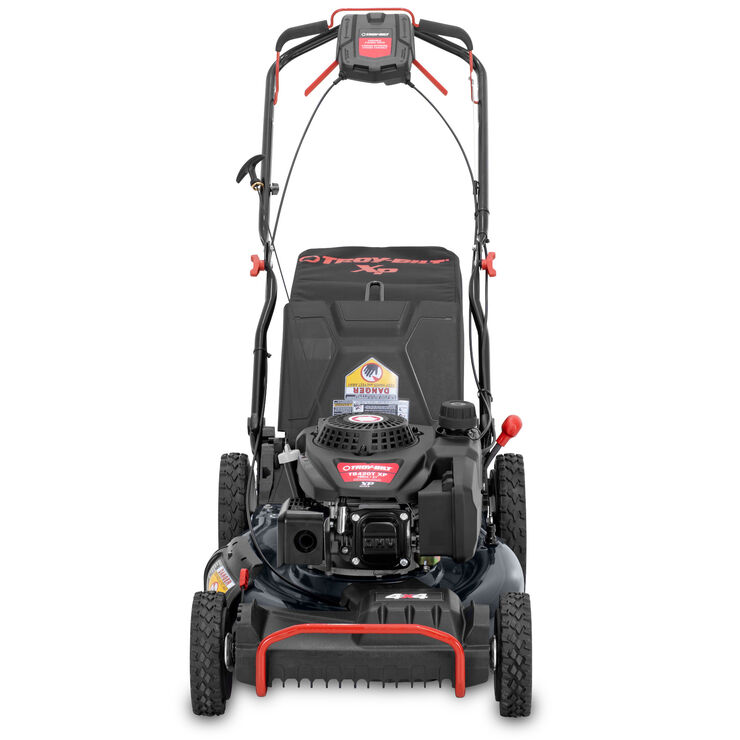

TB420T XP Self-Propelled Lawn Mower
Designed for power and performance, the commercial-grade 196cc Troy-Bilt® engine on the TB420K XP all-wheel drive mower is covered by a 5-yr. Limited warranty. All-wheel drive transmission adapts to mowing conditions, allowing you to switch between front-, rear- or all-wheel drive quickly. Quickly rinse grass clippings under the deck using the deck-wash port after each mow. Designed to connect with standard-size garden hoses, regular rinsing can also help minimize build-up under the deck. A rugged 21" steel cutting deck has a rear bag, mulching, and side discharge options included to help keep the lawn clear of clippings and leaves.
- All-wheel drive transmission adapts to mowing conditions by easily switching between front-, rear- and all-wheel drive to help maintain traction
- 196cc commercial-grade Troy-Bilt® engine is covered by a 5-yr. limited warranty and designed for powerful performance, easy starting, and quiet operation.
- Large 2.5 bushel rear bag collects clippings for easy clean up or composting and minimizes the time spent emptying the bag.
- 11" high rear wheels with aggressive tread design help provide traction and make it easy to navigate uneven terrain.
- 21"steel deck features the TriAction® cutting system designed to deliver a well-groomed look to your lawn. The rake bumper, specialized blade, and symmetrical deck are engineered to create finely mulched clippings and provide a clean, even cut.
TB420T XP Self-Propelled Lawn Mower Features
Auto Choke Engine
Powered by a Honda Auto Choke engine that removes the need for manual choke adjustment before starting
High Rear Wheels
Pushes more easily over rough spots and up hills with 11-in high rear wheels
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Maintain a Healthy Lawn
Included mulch kit helps maintain a healthy lawn

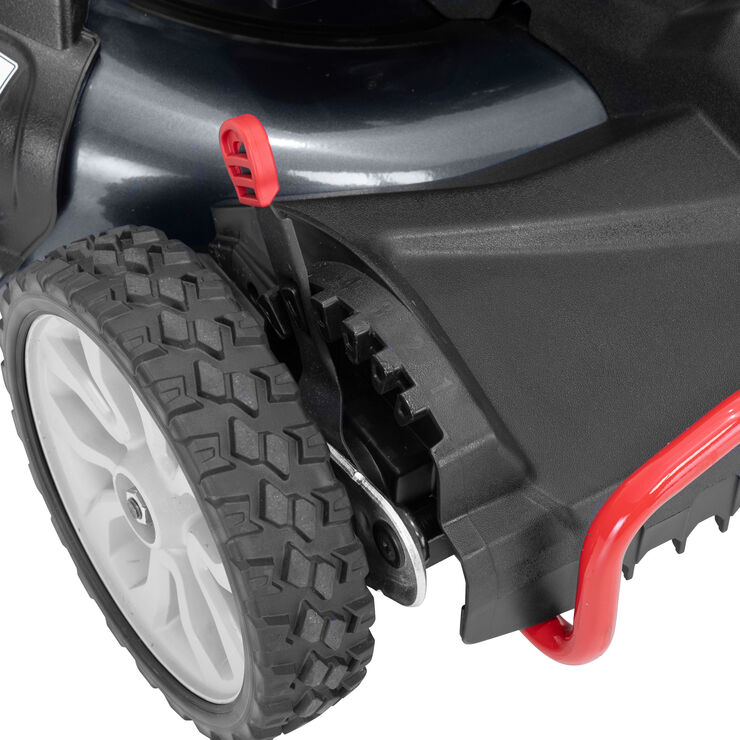

Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Easy Maintenance
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
All Wheel Drive
All-wheel drive transmission adapts to any mowing condition by easily switching between front-, rear- and all-wheel drive to get the right traction
Easy Clean Up
Larger 2.3 bushel rear bag collects more clippings for easy clean up or composting.
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Model Number 5C70M0
- Engine Displacement 196cc
- Starter Type Recoil
- Fuel Tank Capacity 1.3 qt
- Engine Oil Capacity 17 oz
- Choke Autochoke
Drive System
- Drive System AWD
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
Controls
- Handle Adjustable Ergonomic
- Drive Controls Dual Lever
Wheels
- Tread Pattern Aggressive
- Front Wheels 8 in
- Rear Wheels 11 in
- Bearing Type Poly Bushing
Dimensions
- Dimensions L/W/H 17.75 x 24 x 40.38
- Weight (approx.) 96 lbs.
Additional Specifications
- Model Number 12A-N2RB563
Warranty
- Warranty 3-year limited
- Commercial Warranty No
- Engine Warranty 5-year limited
Grass Collector
- Grass Bag Capacity 2.3 Bushel
- Bagger Type Dust Blocking
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 12AN2RB563 | MAN:OWN:DIGEST_163_196CC_COMM_ | ||
| MAN:OWN:DIGEST_163_196CC_COMM_ | 769-26599 | Download | |
| MANL:OPER:BILING:AWD:12X:21in | 769-23790 | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-26316 | Download | |
| SHEET:SUP:12X:21IN_Handle_Assm | 769-26729 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:BILING:EPA:EXH:21-22 | 769-26273 | Download | |
| SHEET:SUP:BILING:EPA:EXH:22-23 | 769-26608 | Download |
