TB290 ES Self-Propelled Lawn Mower
- Starting is easy with push-button electric start
- Built In America with U.S and Global Parts since 1937
- XP™ Series 3-year limited warranty for extended peace of mind
- Get improved control and faster turns with variable speed front wheel drive
- Troy-Bilt Check, Don't Change(TM) engine eliminates the need to change oil by simply checking before each use and topping off as needed
- Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
TB290 ES Self-Propelled Lawn Mower Features

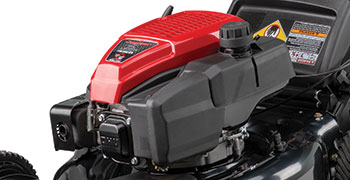

Check, Don't Change(TM)
Troy-Bilt Check, Don't Change(TM) engine eliminates the need to change oil by simply checking before each use and topping off as needed.
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easy Clean Up
1.9 bushel rear bag collects grass clippings for easy clean up or composting.
Maintain a Healthy Lawn
Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck

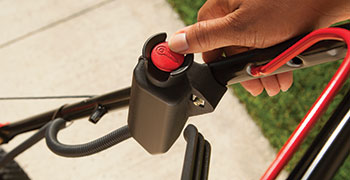

Starting made easy
Starting is easy with push-button electric start
Backed with a 2-year limited warranty for peace of mind
Specs & Maintenance
- Engine Brand Troy-Bilt®
- Engine Model 159 Series OHV
- Engine Displacement 159cc
- Starter Type Standard electric start
- Fuel Tank Capacity 1 qt.
- Engine Start Push Button Electric Start
- Engine Oil Capacity 20oz 10W30 (included)
- Speed Single Lever w/ variable 4-speed
- Drive System Self-Propelled, FWD
- Deck Cutting Width 21"
- Deck Lift Dual-lever deck height adjustment
- Cutting Height Range 1.25"-3.75"
- Deck Positions Dual lever 6-position
- Warranty 2-year limited, SureStart
- Front Tires 8-in
- Rear Tires 8-in
- Handle Adjustable Loop w/indent
- Front Wheels 8"
- Rear Wheels 8"
- Dimensions L/W/H 36.5" (L) x 24"(W) x 17.5"(H)
- Weight (approx.) 90 lbs
- Discharge Location 3-in-1, side discharge, mulch or rear bag
- Grass Bag Capacity 1.9 bushel
- Model Number 12AGA2MT766
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Cub Cadet, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Cub Cadet is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
