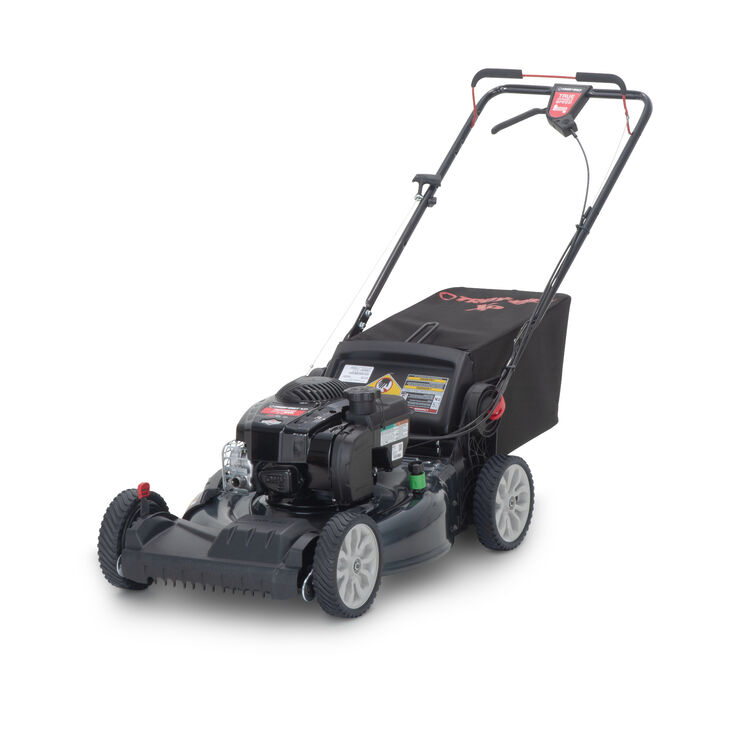

TB220B XP SpaceSavr™ Self-Propelled Mower
Extra comes standard with the Troy-Bilt® XP Series™, and the TB220B XP SpaceSavr™ walk behind self-propelled lawn mower has the extra performance you'll need. Front wheel drive allows you to navigate your yard with ease with improved control and faster turns. The TB220B XP was designed to save storage space, allowing you to store it flat under a tool bench or in an upright, vertical position against the wall. A reliable 150cc Briggs & Stratton features ReadyStart™ technology for simple, no prime no choke starting. A 21-in steel deck provides durability that's built to last while delivering a clean, even cut and a deck wash for easy maintenance. Quickly adjust cutting height with conveniently located dual-lever height adjusters All backed by a strong, 3-year limited warranty for extende dpeace of mind. When your yard asks a little more of you, the Troy-Bilt XP Series offers the extra performance you need.
Documents and Guides
- Powered by a 150cc Briggs & Stratton ReadyStart™ engine with simple no prime, no choke starting
- The XP™ Series is backed by a 3-year limited warranty for extended peace of mind

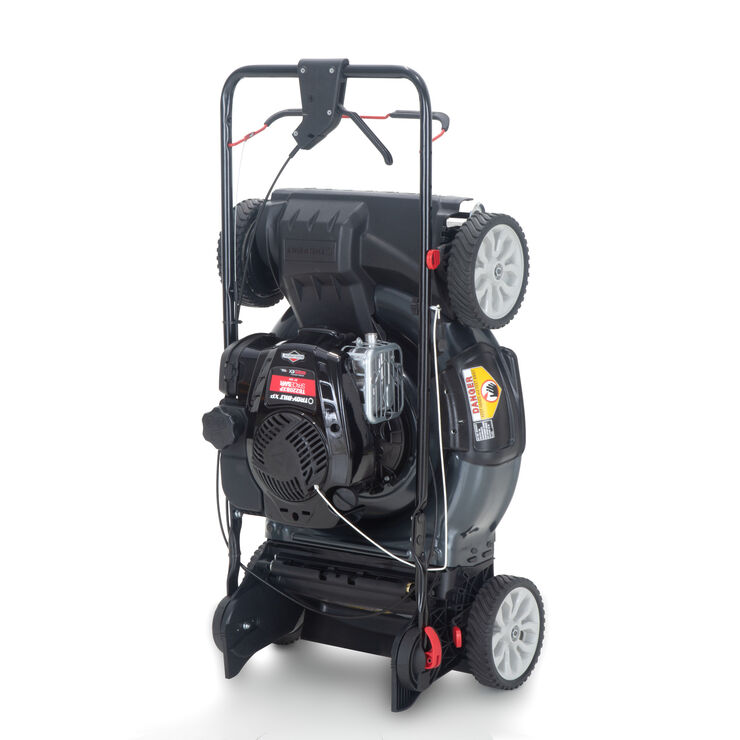

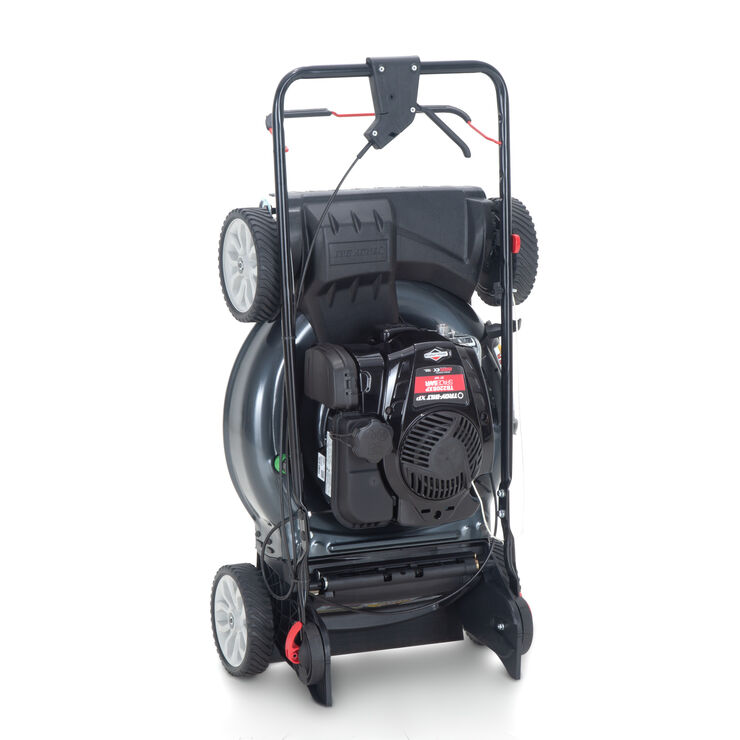

- SpaceSavr™ design lets you store under a tool bench, in an upright position against a wall or anywhere else convenient
- Stays stable and secure in an upright position with innovative rear clip that acts as a kickstand
- 1.9 bushel rear bag collects grass clippings for easy clean up or composting
TB220B XP SpaceSavr™ Self-Propelled Mower Features
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
3-Year Limited Warranty
XP™ Series 3-year limited warranty for extended peace of mind
Specs & Maintenance
- Engine Brand Briggs & Stratton®
- Engine Model 625 EXi
- Engine Model Number 093J02-0001
- Engine Displacement 150cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke ReadyStart
- Drive System FWD
- Deck Cutting Width 21 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
- Warranty 3-year limited
- Commercial Warranty No
- Engine Warranty 3-year limited
- Handle Loop

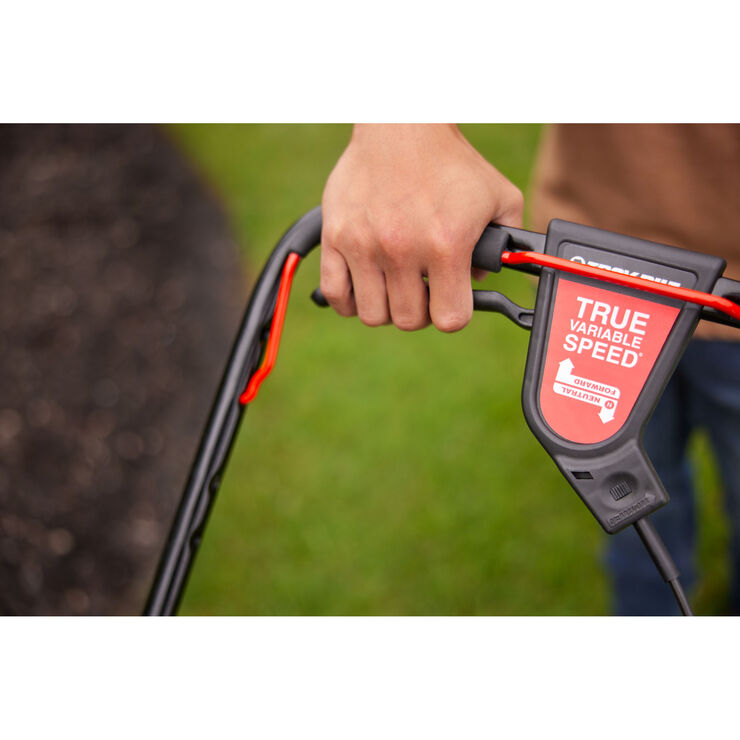

- Drive Controls Single Lever
- Tread Pattern S-Wave
- Front Wheels 8"
- Rear Wheels 8"
- Bearing Type Poly Bushing
- Model Number 12BVU2V3B66
- Grass Bag Capacity 1.9 Bushel
- Bagger Type Dust Blocking
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
