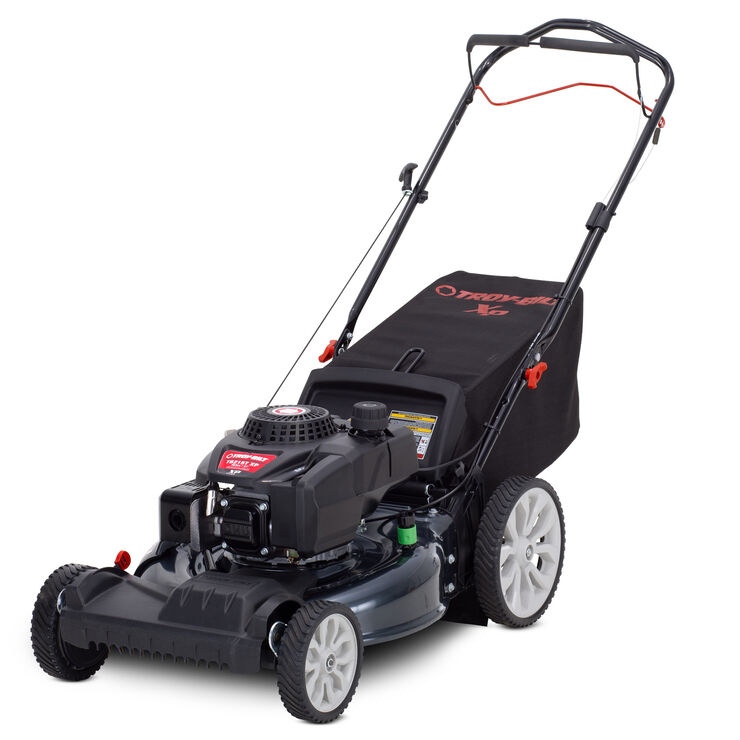

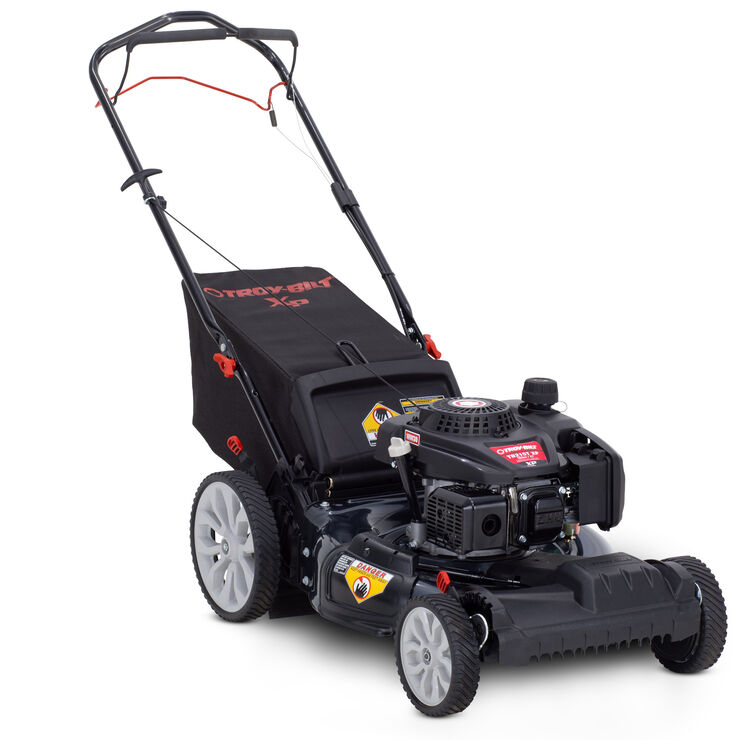

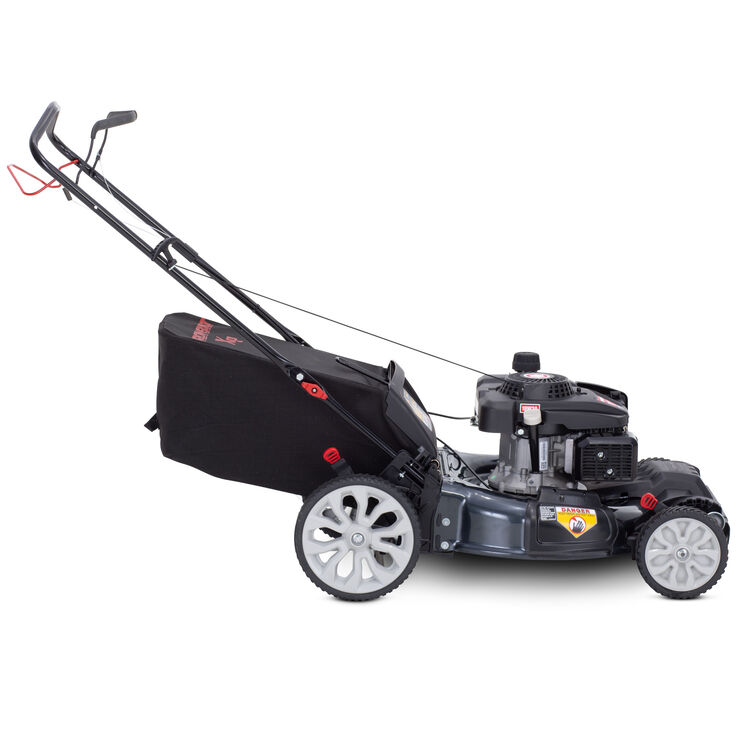

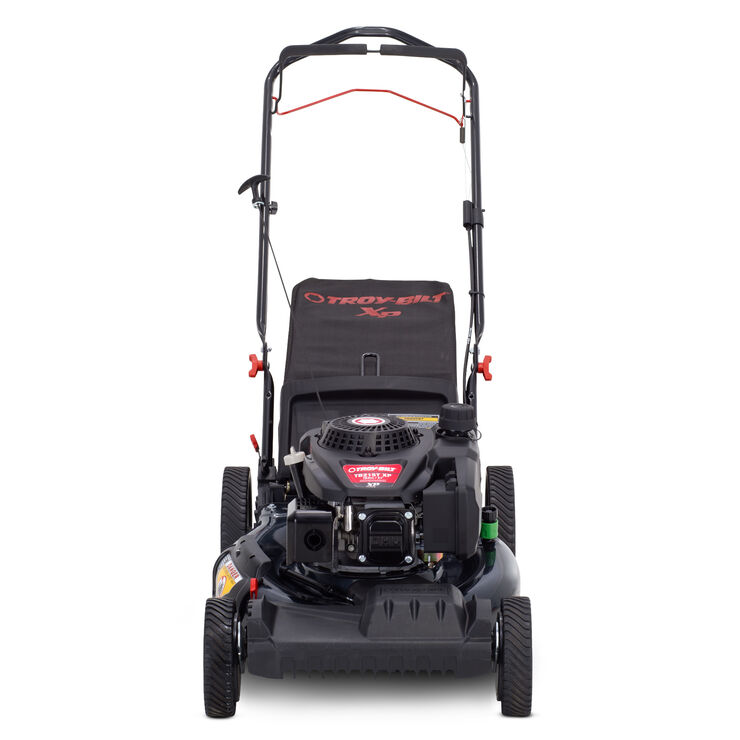

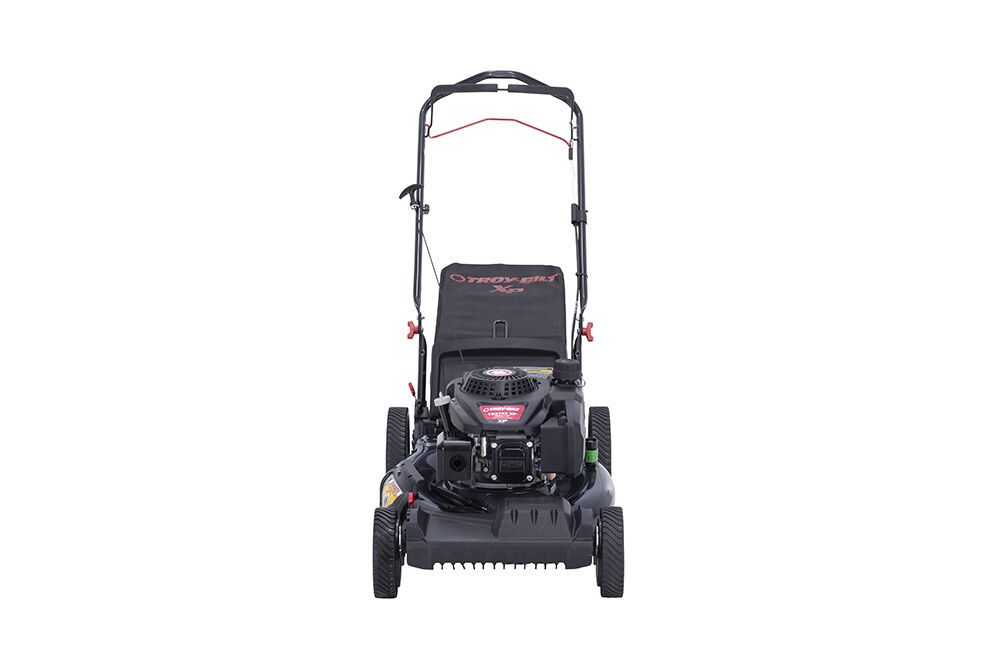

TB215T XP Self-Propelled Lawn Mower
Item#:
12B-B2RA563
$ 699.00
TB215T XP Self-Propelled Lawn Mower
Item#:
12B-B2RA563
$ 699.00
Extra comes standard with the Troy-Bilt® XP Series™, and the TB215T XP walk behind self-propelled lawn mower has the extra performance you'll need. Front wheel drive allows you to navigate your yard with ease with improved control and faster turns. A reliable 163cc Troy-Bilt engine provides dependable, no choke starting with the Autochoke System. A 21-in steel deck provides durability that's built to last while delivering a clean, even cut. All backed by a strong, 3-year limited warranty for extende dpeace of mind. When your yard asks a little more of you, the Troy-Bilt XP Series offers the extra performance you need.

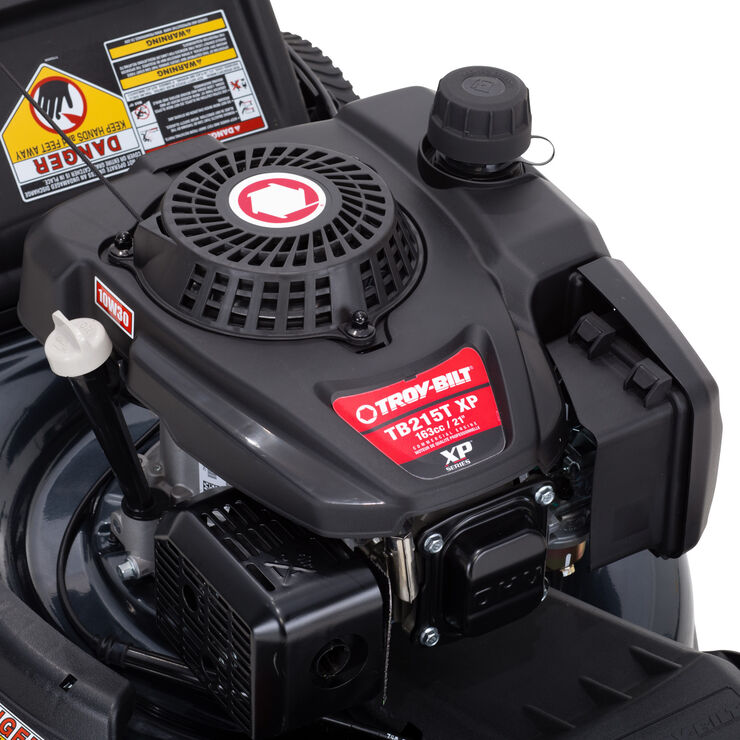

- Powered by a 163cc Troy-Bilt Autochoke engine that removes the need for manual choke adjustment before starting
- The XP™ Series is backed by a 3-year limited warranty for extended peace of mind
- Get improved control and faster turns with front wheel drive

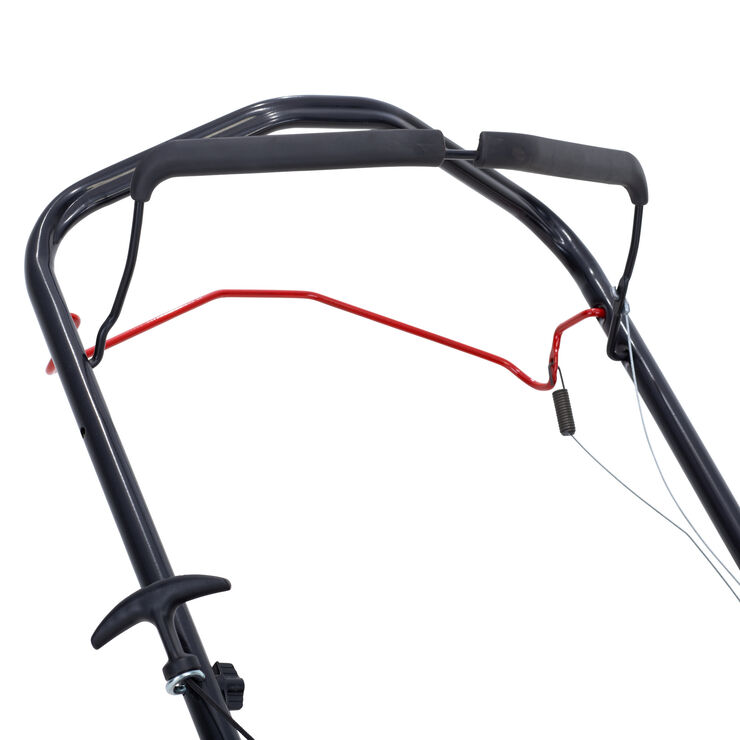

- Ergonomic handle design makes navigating your yard easier on your hands
- 1.9 bushel rear bag collects grass clippings for easy clean up or composting
- 11" high rear wheels provide added traction to make navigating uneven terrain easier
Attachments & Accessories
![21" Universal Xtreme® Blade](https://www.troybilt.ca/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dw57c3e180/products/490-100-B058.jpg?sw=280&sh=280&sm=fit "21" Universal Xtreme® Blade")
TB215T XP Self-Propelled Lawn Mower Features
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.

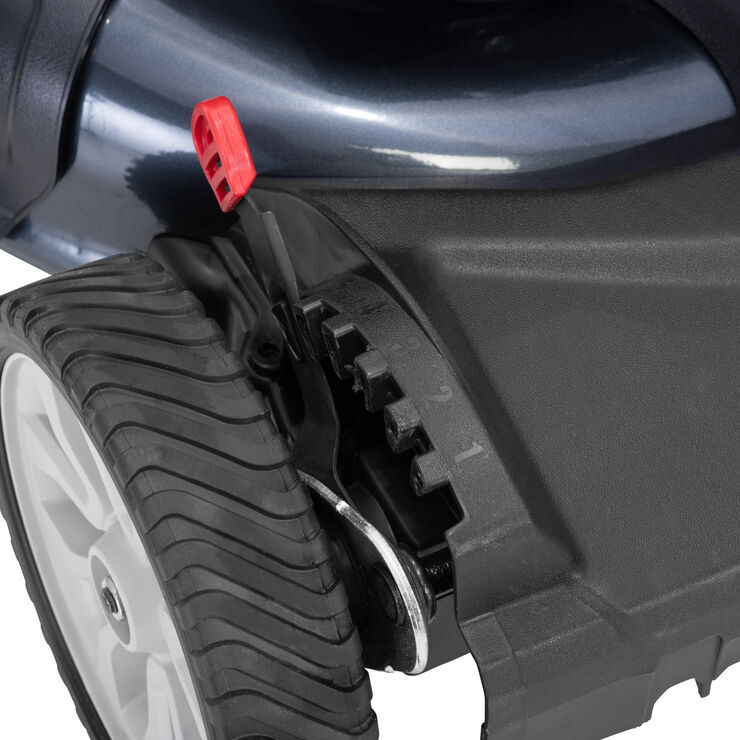

Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
High Rear Wheels
Pushes more easily over rough spots and up hills with 11-in high rear wheels
Easy Maintenance
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Model Number 5C65M0
- Engine Displacement 163cc
- Starter Type Recoil
- Fuel Tank Capacity 1.3 qt
- Engine Oil Capacity 17 oz
- Choke Autochoke
Drive System
- Drive System FWD
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
Warranty
- Warranty 3-year limited
- Commercial Warranty No
- Engine Warranty 5-year limited
Controls
- Handle Adjustable Ergonomic
- Drive Controls Bottom Bail
Wheels
- Tread Pattern S-Wave
- Front Wheels 8 in
- Rear Wheels 11 in
- Bearing Type Poly Bushing
Additional Specifications
- Model Number 12B-B2RA563
Grass Collector
- Grass Bag Capacity 1.9 Bushels
- Bagger Type Dust Blocking
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 12BB2RA563 | MAN:OWN:DIGEST_163_196CC_COMM_ | ||
| MAN:OWN:DIGEST_163_196CC_COMM_ | 769-26599 | Download | |
| MANL:OPER:BILING:12X:21in GEN: | 769-22911 | Download | |
| SHEET:SUP:11X:12XTROY:USCA | 769-26316 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:BILING:EPA:EXH:21-22 | 769-26273 | Download | |
| SHEET:SUP:BILING:EPA:EXH:22-23 | 769-26608 | Download |
