Super Bronco XP 46
This Troy-Bilt lawn tractor is a dependable riding mower powered by a 547cc Troy-Bilt engine that delivers plenty of power and reliable starting. The automatic transmission drives like a car with foot pedal control and provides smooth control of speed and direction. The large 46-inch twin blade cutting deck reduces mowing time and comes with an integrated deck wash port to make cleaning the underside of the deck easier. Experience a more comfortable ride the high back seat and rubber foot pads. You can depend on Troy-Bilt to keep yardwork from feeling like a chore, and we won't let you down.
- 547cc Troy-Bilt engine
- Hydrostatic transmission with cruise control offers smooth change of speed and direction with the foot pedal control
- 46 in. twin blade cutting deck features 12 cutting height adjustments to fit all your lawn care needs
- 4 anti-scalp deck wheels help prevent damage to the deck and your yard when the mower encounters uneven or sloped areas
- Ride with more comfort and less vibration with an adjustable high-back seat
- 11 litre fuel tank means less filling for more mowing time
- Deck wash connection allows for easy cleaning
- 4-Year Limited Warranty
Super Bronco XP 46 Features
Clean, Precise Cut
46-in deck ,with anti-scalp deck wheels to prevent turf damage, delivers a clean, even cut. Mulch kit (sold separately) helps maintain a healthier lawn
Keep Your Yard and Deck Clean
Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings

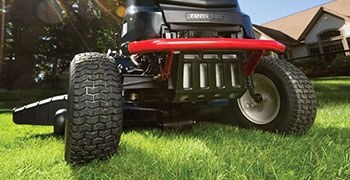

Durability
Cast iron front axle for added durability and rugged performance
AutoDrive™
AutoDrive™ transmission with foot pedal control drives like a car
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Displacement 547cc
- Fuel Tank Capacity 11.3 Litres
- Cylinders/Material Single
- Engine Oil Capacity 1.8 qts
- Choke Choke-a-matic
Drive System
- Transmission Foot controlled hydrostatic
Cutting Deck
- Deck Cutting Width 46-in
- Deck Wash Yes
- Deck Engagement (PTO) Manual
- Deck Construction Stamped
- Deck Lift Manual
- Cutting Height Range 1.5” – 3.75”
- Anti-Scalping 4 anti-scalping wheels
- Deck Positions 12 Positions
Warranty
- Warranty 4-Year limited residential warranty
Chassis
- Front Axle Cast Iron
- Turning Radius 16-in
- Front Tires 15-in x 6-in
- Rear Tires 20-in x 8-in
- Tire Tread Turf Saver
- Rear Tow Hitch Included
Controls
- Cruise Control Yes
- Mow in Reverse Yes, operator controlled
Comfort
- Seat Type High-Back
- Steering Comfort Standard
Additional Specifications
- Mulch Kit Optional
- Headlight(s) Standard
- Cup Holder Included
- Bagger Optional
- Recommended Oil Type 10W30
- Model Number 13A8A9BT563
Model | Manual | Form Number | |
|---|---|---|---|
| 13A8A9BT563 | MAN:OPER:DIG:TRILING:NX15 | ||
| MAN:OPER:DIG:TRILING:NX15 | 769-25738A | Download | |
| MAN:OPER:TRILING:NX15 | 769-20951A | Download | |
| MAN:OWNR:ENG:MTD:547CC:CAN | 769-18712 | Download | |
| MANL:OPER:BILING:547cc:MTD ENG | 769-25330 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
| SHEET:SUP:BILING:EPA:CARB:EXH: | 769-25882 | Download | |
| SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUPP:WARR/PARTS:CDN TB N | 769-24450 | Download | |
| SHEET:SUPP:WARR/PARTS:CDN TB N | 769-24450A | Download |
