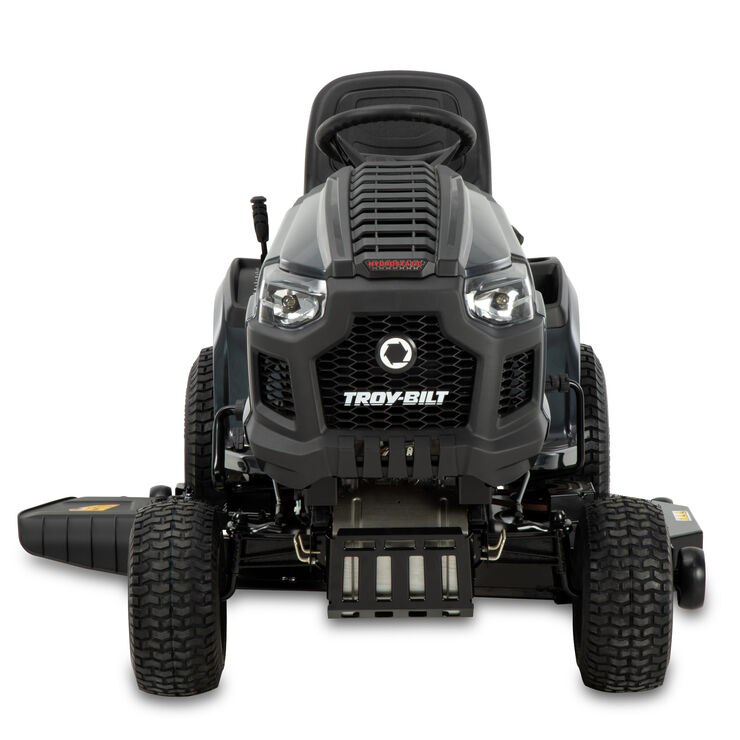

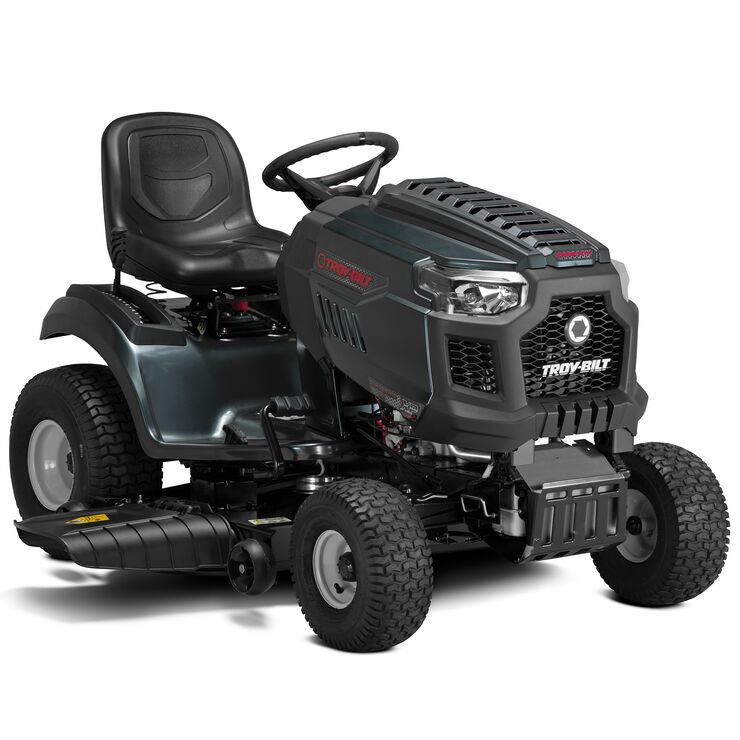

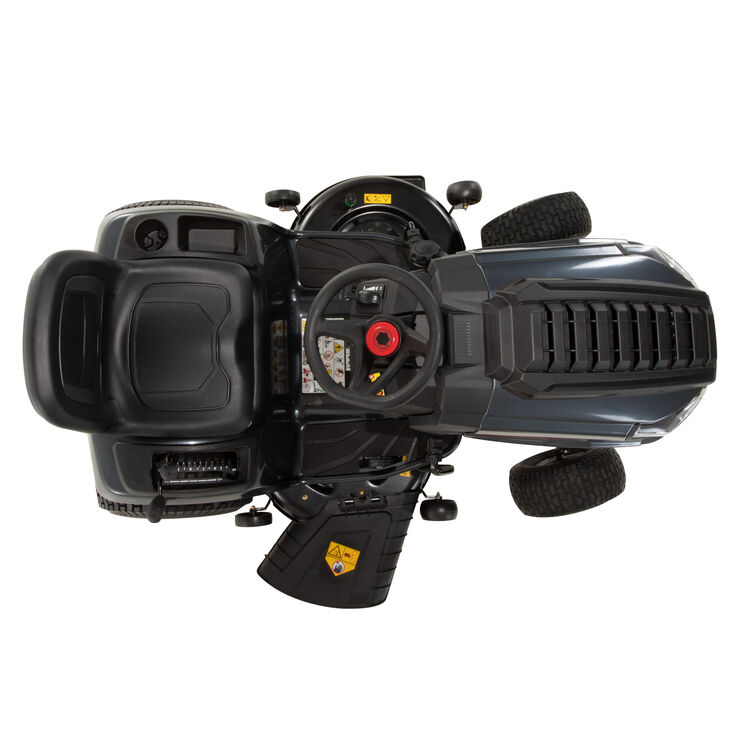

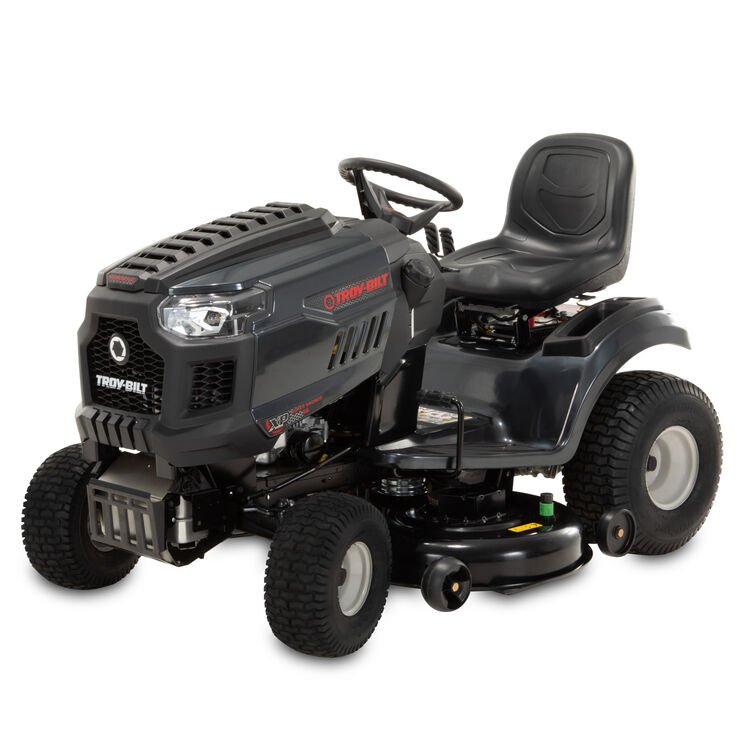

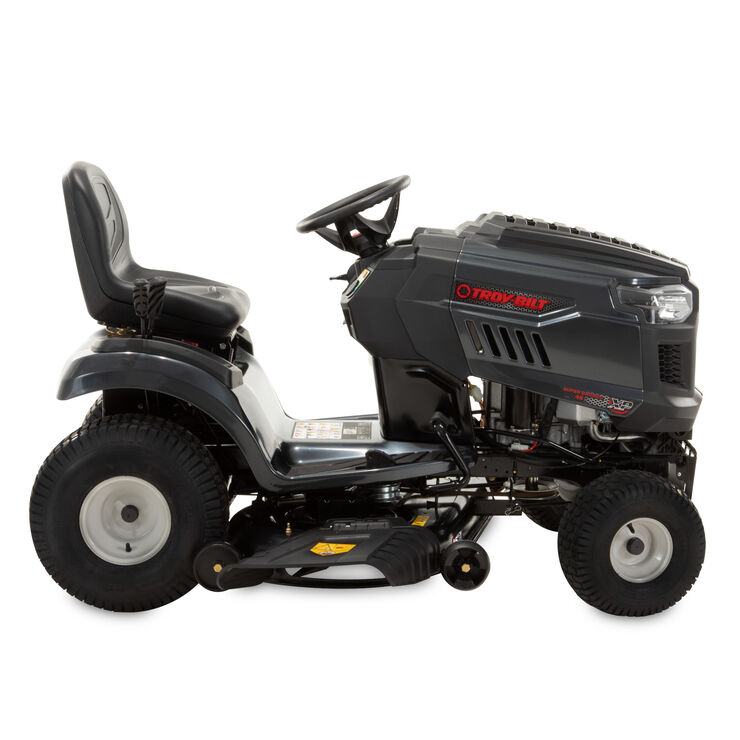

Super Bronco™ 46I XP Riding Lawn Mower
Tackle mowing tasks and other yard work jobs easily with the Troy-Bilt® Super Bronco™ 46I XP riding mower. A large Step-Thru™ frame is designed for easy on-and-off access and includes a rear hitch for quick attachment of tow-behind accessories, like dump carts, spreaders, or aerators (attachments sold separately). Hydrostatic transmission with cruise control is designed for a smooth change of speed and direction, while the adjustable, high-back seat helps add comfort while using. The AGM battery is designed to provide reliable starting season after season.
Documents and Guides
- 19 HP*/540cc Briggs & Stratton engine with pressure lubrication helps prevent engine damage and extends the life of your mower
- Hydrostatic transmission has foot-pedal control for a smooth change of speed and direction and includes cruise control to help mow at a constant speed
- 46" side-discharge, steel deck , has 4 anti-scalp deck wheels to help prevent turf damage and deliver a clean, even cut.
- Adjustable, high-back seat helps provide a comfortable ride, while the cast iron front axle is designed to provide durability and ruggedness
Super Bronco™ 46I XP Riding Lawn Mower Features
3-Year Limited Warranty
XP™ Series 3-year limited warranty for extended peace of mind
Pride
Headquarted in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Keep Your Yard and Deck Clean
Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings
Specs & Maintenance
Engine
- Engine Brand Briggs & Stratton®
- Engine Model Professional Series
- Engine Model Number 33S877-0038
- Engine Displacement 540cc
- Engine Output 19 HP
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Single
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Tuff Torq® TL-200
- Forward Speed 5.5 MPH / 8.6 KMH
- Reverse Speed 2.5 MPH / 4 KMH
- Drive System Hydrostatic
- Transmission Control Foot Pedal
- Transmission Housing Aluminum
Cutting Deck
- Deck Cutting Width 46 in
- Deck Wash Yes
- Deck Material 12-gauge steel
- Deck Engagement (PTO) Manual
- Deck Construction Stamped
- Blade(s) 2
- Deck Lift Manual
- Cutting Height Range 1.5” - 3.75”
- Anti-Scalping 4 gauge wheels
- Deck Positions 12
Chassis
- Frame Robotically welded
- Turning Radius 16"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Cast iron
Controls
- Cruise Control Yes
- Brakes Disc
Comfort
- Seat Type High-back
- Armrests No
- Seat Adjustment Lever
- Floor Mats Rubber
Wheels
- Bearing Type Poly Bushing
- Rear Tires 20"x 8"-8"
- Front Tires 15"x 6"-6"
- Tire Tread Turf Saver
Additional Specifications
- Mulch Kit Available Separately
- Headlight(s) Standard
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13ALA9BTA66
Warranty
- Residential Warranty 3-year limited residential
- Frame Warranty 3-Year limited
- Front Axle Warranty 3-Year limited
- Deck Shell Warranty 3-Year limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower *As rated by engine manufacturer
Model | Manual | Form Number | |
|---|---|---|---|
| 13ALA9BTA66 | MAN:OPER:DIG:TRILING:NX15 | ||
| MAN:OPER:DIG:TRILING:NX15 | 769-25738C | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738D | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738E | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-26860 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26637 | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26637A | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26891 | Download |
