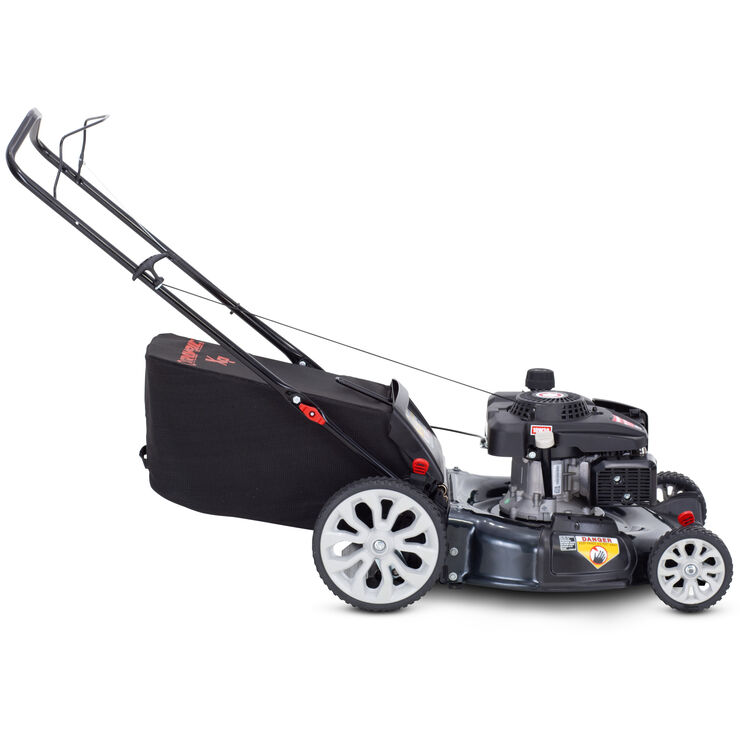

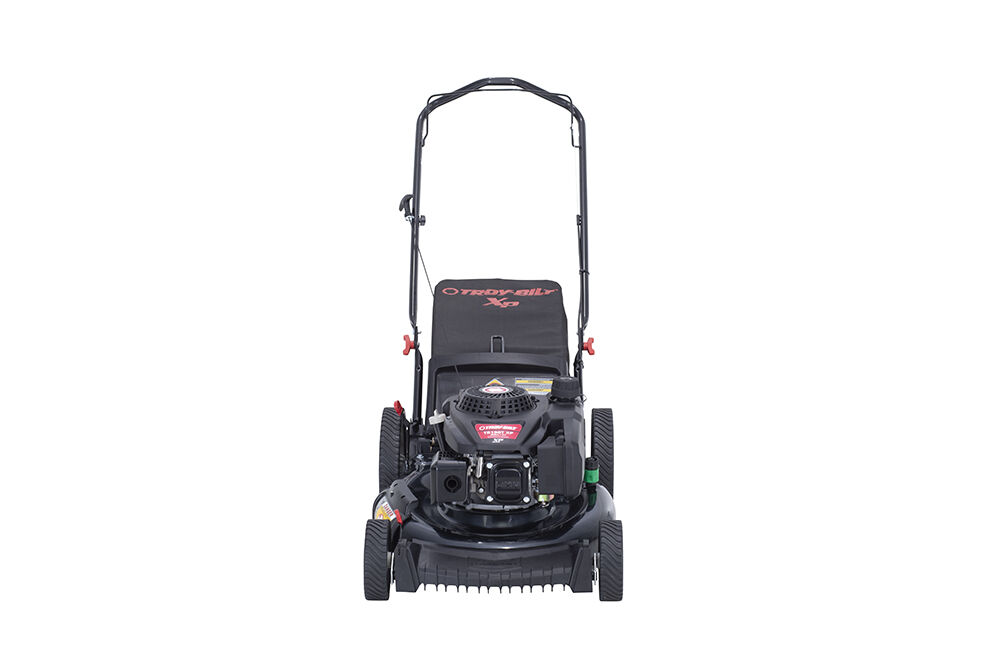

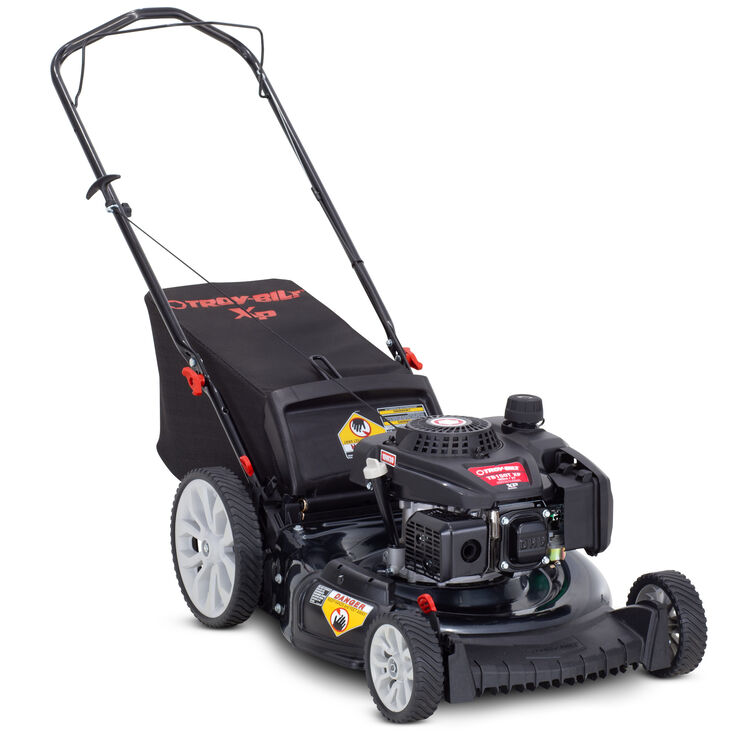

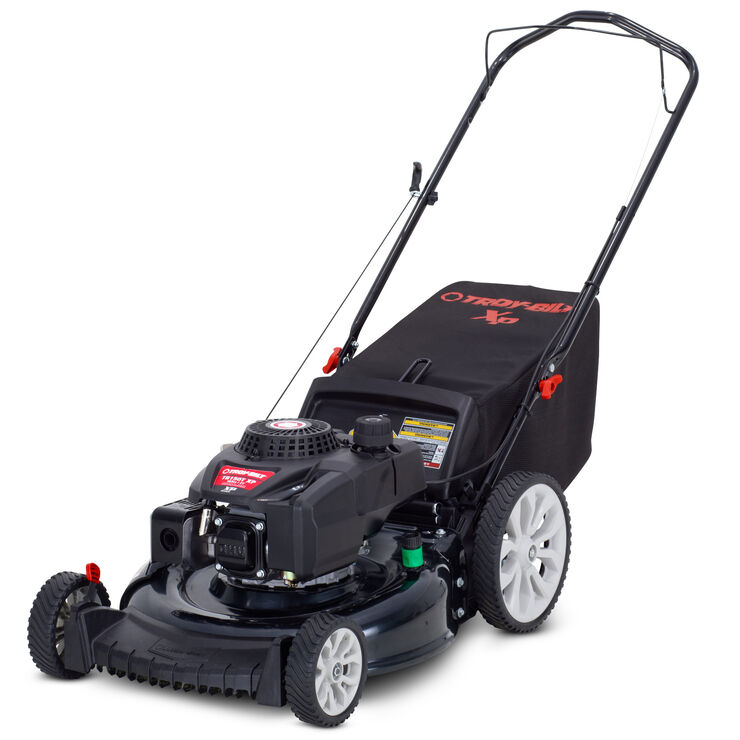

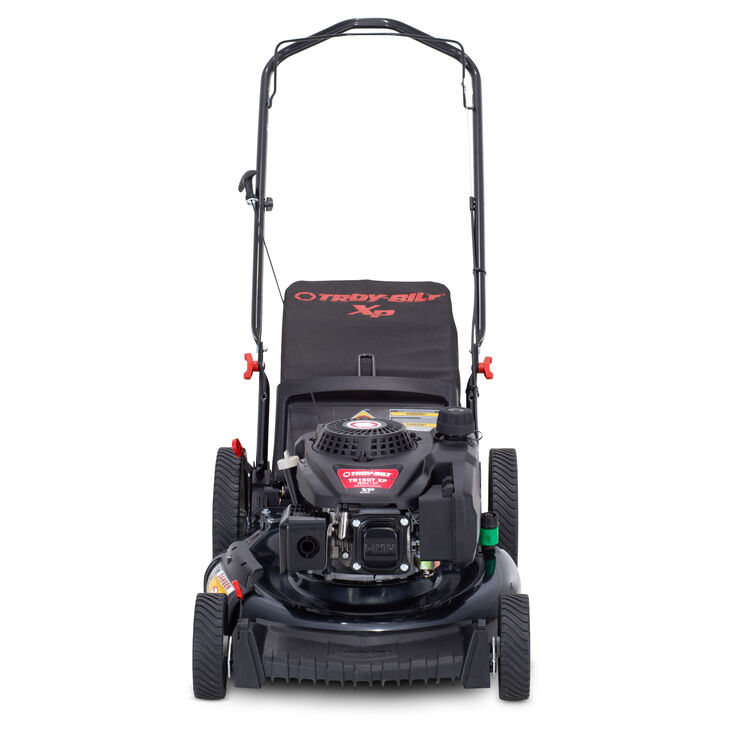

TB150T XP Push Mower
Extra comes standard with the Troy-Bilt® XP Series™, and the TB150T XP walk behind push lawn mower has the extra performance you'll need. A reliable 163cc Troy-Bilt engine provides dependable, no choke starting with the Autochoke System. A 21-in steel deck provides durability that's built to last while delivering a clean, even cut. High rear wheels provide added traction to easily navigate the uneven terrain in your yard. All backed by a strong, 3-year limited warranty for extended peace of mind. When your yard asks a little more of you, the Troy-Bilt XP Series offers the extra performance you need.

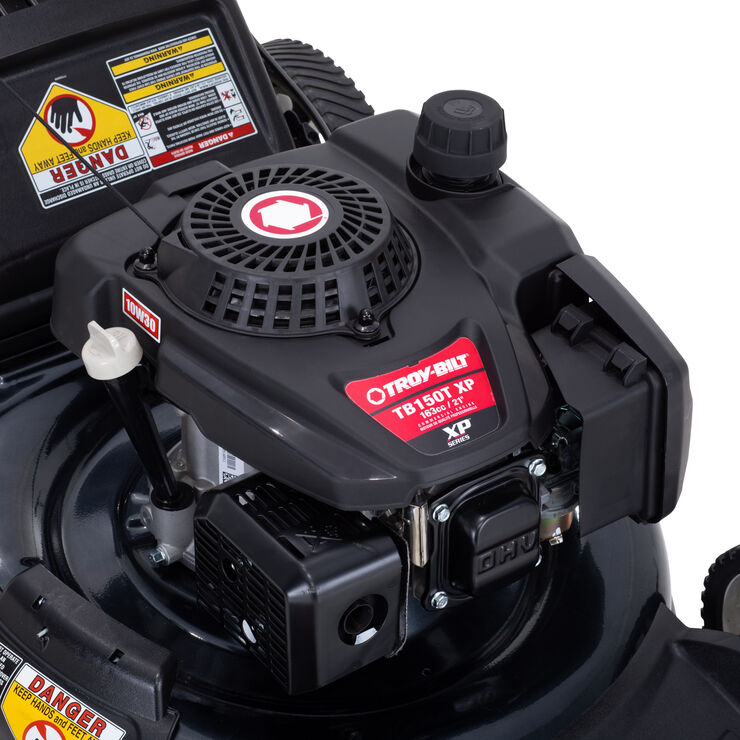

- Powered by a 163cc Troy-Bilt Autochoke engine that removes the need for manual choke adjustment before starting
- The XP™ Series is backed by a 3-year limited warranty for extended peace of mind
- 11" high rear wheels provide added traction to make navigating uneven terrain easier

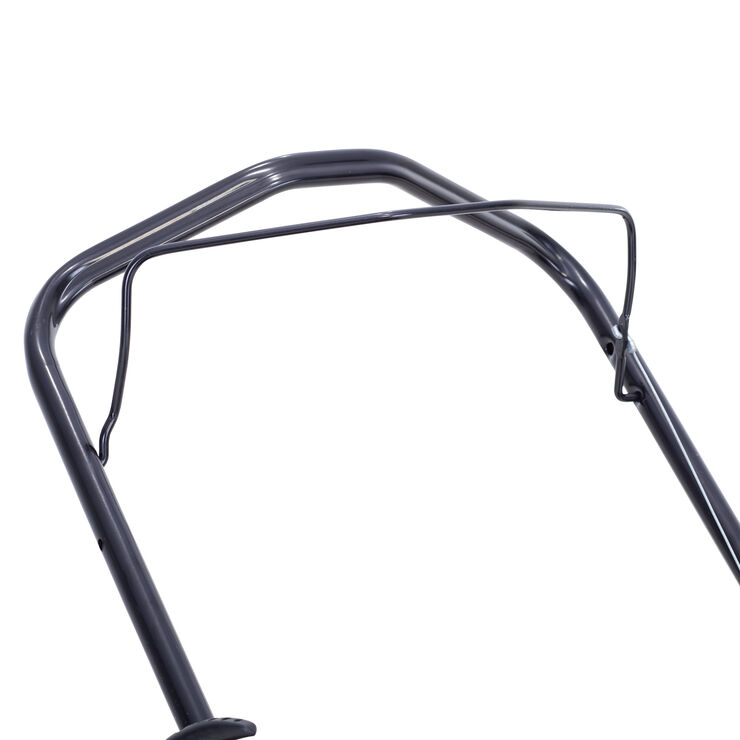

- Ergonomic handle design makes navigating your yard easier on your hands
- 1.9 bushel rear bag collects grass clippings for easy clean up or composting
- Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
TB150T XP Push Mower Features
High Rear Wheels

Pushes more easily over rough spots and up hills with 11-in high rear wheels
TriAction® Cutting System

TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easy Clean Up

1.9 bushel rear bag collects grass clippings for easy clean up or composting.
Maintain a Healthy Lawn

Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights

Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Easy Maintenance

Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Model Number 5C65M0
- Engine Displacement 163cc
- Starter Type Recoil
- Fuel Tank Capacity 1.3 qt
- Engine Oil Capacity 17 oz
- Choke Autochoke
Drive System
- Drive System Push
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
Warranty
- Warranty 3-year limited
- Commercial Warranty No
Controls
- Handle Adjustable Ergonomic
- Drive Controls N/A
Wheels
- Tread Pattern S-Wave
- Front Wheels 7 in
- Rear Wheels 11 in
- Bearing Type Poly Bushing
Additional Specifications
- Model Number 11A-B2RA563
Grass Collector
- Grass Bag Capacity 1.9 Bushels
- Bagger Type Dust Blocking
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
---|---|---|---|
11AB2RA563 | MAN:OWN:DIGEST_163_196CC_COMM_ | ||
MAN:OWN:DIGEST_163_196CC_COMM_ | 769-26599 | Download | |
MANL:OPER:BILING:11X:GEN:DIGES | 769-22910B | Download | |
SHEET:SUP:11X:12XTROY:USCA | 769-26316 | Download | |
SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
SHEET:SUP:BILING:EPA:EXH:21-22 | 769-26273 | Download | |
SHEET:SUP:BILING:EPA:EXH:22-23 | 769-26608 | Download |
