CSV 070 Self-Propelled Chipper Shredder Vacuum
Reduce the effort needed to clean up leaves and branches in the yard with the self-propelled CSV070 chipper shredder vacuum. Sweep up leaves easily with the 24" vacuum of the CSV070 chipper shredder vacuum and get into tight spots and under shrubs with 10' on-board vacuum hose.
- Powered by a reliable 159cc Troy-Bilt Autochoke engine
- Combine the benefits of a chipper shredder with the convenience of a yard vacuum in one machine
- 3 ft hose extension included to extend total reach to 10 ft
- Turn eight bags of yard debris into one with 8:1 reduction ratio
- Dedicated chipper chute accepts branches up to 1.5" in diameter
- 24" vacuum width quickly removes leaves in the yard while the 7' on-board hose gets into tight spot and under shrubs
CSV 070 Self-Propelled Chipper Shredder Vacuum Features
Debris Collection Bag
2-bushel bag collects shredded yard waste to spread in landscape beds or put into compost piles.

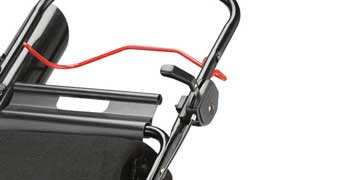

Self-propelled drive system features both high and low speed options.
Backed with a 2-year limited warranty for peace of mind
Specs & Maintenance
- Engine Brand Troy-Bilt®
- Engine Model Number 1X65CUC
- Engine Displacement 159cc
- Starter Type Recoil
- Fuel Tank Capacity 1.2 qt
- Drive System Self-Propelled
- Warranty 2-year limited
- Handle Gullwing
- Tread Pattern S-Wave
- Front Wheels 8"
- Rear Wheels 8"
- Impeller Diameter 13.5 in
- Model Number 24A-07MP766
- Drive Self-Propelled
- Hose(s) 7 ft Hose with 3' Extension
- Chipping Capacity 1.5 in Dia. Branches
- Chipper Blades One Hardened Steel
- Shredder Flails Six Cast Steel Flails (Two Sets of Three)
- Impeller 13.5" Cast Aluminum
- Reduction Ratio 8:1
- Debris Bag 2 Bushel Felt-Lined
- Deck Cutting Width 24 in
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
|MANL:OPER:BILING:24A:02X 05X 0||769-21550||Download|
|MANL:OPER:BILING:24A:02X 05X 0||769-21550A||Download|
|MANL:OPER:FRENCH:24A:02X 05X 0||769-12322_FR||Download|
|MANL:OPER:FRENCH:24A:02X 05X 0||769-21550_FR||Download|
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Cub Cadet, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Cub Cadet is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
