CS 4325 Troy-Bilt Chipper Shredder
Item#:
24B-424M766
$ 1,399.00
CS 4325 Troy-Bilt Chipper Shredder
Item#:
24B-424M766
$ 1,399.00
Ten bags of lawn waste become one with the CS4325 Troy-Bilt chipper shredder. Large, upright steel hopper is easy to load after trimming hedges, shrubs and trees. Semi-pneumatic wheels make it easier to move throughout your yard for efficient clean up.
- Dependable power and starting with 250cc Briggs & Stratton engine
- Turn 10 bags of yard debris into one with 10:1 reduction ratio
- 3" chipping capacity with self-sharpening chromium steel chipping blades for durable, rugged performance
- Large upright steel hopper is built for durability and easy to load with debris
CS 4325 Troy-Bilt Chipper Shredder Features

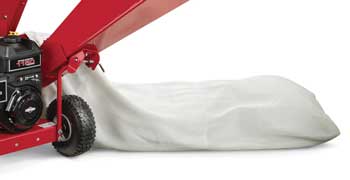

Debris Collection Bag
5-bushel collection bag collects wood chips and mulch for easier distribution in landscape beds or into compost piles.
Confidence
Backed with a 2-year limited warranty for peace of mind
Specs & Maintenance
Engine
- Engine Brand Briggs & Stratton
- Engine Model 15T202-0915
- Engine Displacement 250cc
- Starter Type Recoil
- Fuel Tank Capacity 3 quarts/ 2.8 L
- Engine Oil Capacity 20 oz
Warranty
- Warranty 2 Year Limited
Power and Performance
- Starting System Recoil Start
Dimensions
- Impeller Diameter 13.5 in
Additional Specifications
- Model Number 24B-424M766
Specifications
- Drive N/A
- Wheels 10 x 4 in Pneumatic
- Hose(s) N/A
- Hopper 2-way feed
- Chipping Capacity 3 in Dia. Branches
- Chipper Blades Two Chromium Steel
- Shredder Flails 12 Cast Steel Flails (Four Sets of Three)
- Impeller 13.5" Cast Aluminum
- Reduction Ratio 10:1
- Debris Bag 5-bushel
Blade Specifications
- Blade Length 12"
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 24B424M766 | MANL:OPER:BILING:24X:41/2X:TRO | ||
| MANL:OPER:BILING:24X:41/2X:TRO | 769-10734 | Download | |
| MANL:OPER:BILING:24X:41/2X:TRO | 769-11677 | Download | |
| MANL:OPER:BILING:24X:412-24:TB | 769-08966 | Download | |
| MANL:OPER:BILING:24X:412-24:TB | 769-09749 | Download | |
| MANL:OPER:BILING:24X:4XX:CONSO | 769-12304 | Download | |
| MANL:OPER:BILING:24X:4XX:CONSO | 769-21010 | Download | |
| MANL:OPER:BILING:24X:4XX:CONSO | 769-21010A | Download | |
| MANL:OPER:ENGL:24X:41-2X | 769-08123 | Download | |
| MANL:OPER:FRENCH:24X:4XX:CONSO | 769-12304_FR | Download | |
| MANL:OPER:FRENCH:24X:4XX:CONSO | 769-21010_FR | Download | |
| MANL:PARTS:2012:24X | 769-08252 | Download | |
| MANL:PARTS:2013:24X | 769-08965 | Download | |
| MANL:PARTS:2014:24X | 769-09834 | Download | |
| MANL:PARTS:2015:24X | 769-10808 | Download | |
| SHEET:SUP:FRENCH_ENG:11X:A4_A5 | 769-12011 | Download | |
| SHEET:SUP:FRENCH_ENG:11X:A4_CO | 769-12010 | Download | |
| SHEET:SUPP:WARR/PARTS:CS:UPRIG | 769-21011 | Download | |
| SHEET:SUPP:WARR/PARTS:CS:UPRIG | 769-21011B | Download | |
| SHEET:SUPP:WARR/PARTS:CS:UPRIG | 769-21011C | Download |
Product Reviews
Rated 5 out of
5
by
Mulcher from
Well Engineered/Built
The CS 4325 is a beast. Ample power, not so heavy it can't be moved around by hand for short distances. Clearing the occasional jam is straightforward and easily accomplished. The engine takes some good arm strength to get started, mainly because the power train is fixed and when pulling the starter rope you are also moving all of the internal parts. Some sort of clutch mechanism would solve this, but the machine works just fine as it is. This thing produces excellent mulch, which saves on having to burn a lot of otherwise useless wood. I've got a lot of wood to clean up, and I fully expect the CS 4325 to see me through to the end.
Date published: 2012-09-18
Rated 2 out of
5
by
JeffP from
serious trouble at 3 years
The machine is sturdy and, when it's working properly, does a pretty good job with both branches and leaves if you learn how to feed it (slowly#. I'd be fine with it, but at three years it has taken a dive mechanically. Virtually impossible to start. Needed a new head gasket and pull starter replacement #cost of repair was a third of the cost of a new one), and then it started burning oil seriously, with billowing white clouds of smoke. I kept adding oil every half an hour, hoping to get the mulching done over the weekend before it snows, but the machine stopped, and now I fear the worst.
Three years of only moderate use just isn't enough. The engine is not up to the task.
Date published: 2014-11-22
Rated 3 out of
5
by
MackinAlabama from
Not very Sturdy
This machine works very well when it holds together, but I have had two of them fail on me. On the first one a hinge broke and a wheel fell off. After repairing those, one of the pins that holds the flail blades in came out in operation, and the unit pretty much self-distructed. It was only a month old so I got it replaced. The second unit lasted two months (probably because I wasn't using it very much) and then spit out a nut. This time I saw it and stopped before any major damage happened, but one of the same pins was about to come loose and another nut was ready to fall off. It seems to me this could be an excellent machine with just a little redesign.
Date published: 2009-05-08
Rated 1 out of
5
by
Climmb from
Worst purchase ever
I am the unfortunate owner of this machine. I bought it new 3 years ago. I have have had approximately 20hours of total use. It has been meticulously maintained. The first time I tried to use it this year, I drained the oil and refilled with new engine oil. Because it had stood for the winter, I first turned the engine over several times before filling the fuel tank with fresh gasoline. The chipper started easily, ran for 2 minutes and then BLEW A CHUNK OF ALUMINUM out of the side of the ENGINE! It at least needs a NEW ENGINE - after 20 hours of use!!!!!!
Date published: 2009-08-19
Rated 2 out of
5
by
AMMO from
HARD TO START
This chipper/ shredder works great if you can get it started. I strained my wrist trying to start it. The unit needs an electric start or clutch to make starting easier. Because when starting the blades connected to the motor shaft are also turning when pulling on the starter rope.A lot of strength is needed to start this machine. My wife cannot start the thing. When this monster is running it will chew up anything you put in it as long as you follow the size requirements in the manual. The bag does not attach tightly to the chute, but it has never come off during use.
Date published: 2014-05-31
Rated 5 out of
5
by
MARTY1 from
GREAT CHIPPER SHREDDER
I BOUGHT MY FIRST TROY BILT CHIPPER OVER 16 YRS. AGO AND NOW NEED A LARGER UNIT SO LOOKED AT THIS MACHINE AND ANOTHER TOP BRAND, I WENT WITH TROY-BILT. I BOUGHT THE LARGER 3 INCH UNIT WITH A 250 CC ENGINE,IT FIRED UP ON THE SECOND PULL, IT NEVER BOGGED DOWN ONCE IF YOU FOLLOW THE OWNERS MANUAL YOU WILL HAVE NO PROBLEMS, I BOUGHT A ALLIGATOR LOPPER TO CUT THE CROOKED PIECES OUT AND THIS WILL CUT DOWN YOUR TIME QUITE A BIT. THIS MACHINE IS BUILT JUST AS GOOD AND SAME FEATURES AS THE MORE EXPENSIVE UNIT I WAS CONSIDERING. THE COLLECTION BAG IS HEAVY WHEN FULL BUT IS NICE AS THE MULCH DOES NOT GO ALL OVER THE GROUND. THE LARGER ENGINE PULLS THE BRANCHES IN VERY FAST AS IT HAS LOTS OF TORQUE, OVERALL I AM VERY PLEASED WITH THE PERFORMANCE OF THIS CHIPPER SHREDDER.
Date published: 2008-09-08
Rated 2 out of
5
by
agewins from
Impossible to work on.
The engineering staff at Troy-Bilt outdid themselves when they mounted the engine on the CS 4325 in such a way that it is IMPOSSIBLE to remove the oil check and fill plug without partially disassembling the unit which entails removing a guard and removing 4 bolts from the small chute and loosening another one to enable the user to pivot it to the side and out of the way.
1/2 inch is all that it would have required, 1/2 inch of a relocation to the right would have resolved the problem.
Now I ask, it was impossible for me to ADD OIL to the engine prior to starting and I can assume that since this machine is mass produced and done so on an assembly line that therefore each unit produced was done in precisely the same way.
How was it done, apparently QUALITY CONTROL was not a product that was achievable.
And since this process is required for the INITIAL oil filling I would hasten to assume that it is required for all future oil fillings and even checking same which is recommended every few hours.
Date published: 2018-05-19
Rated 5 out of
5
by
Terrapin from
Beautiful Big Red Monster!
Started on the very first pull... in fact, so far in this machine's life I have a 1:1 pull to start ratio going! That alone is impressive.
It's massively powerful. The first thing I put in it was a 1-1/2" branch from a Maple tree, about 4' long. It shot down the chute like a bullet and blew out of the output so hard it basically vaporized! Blows the grass flat in an 8' fan from the output - wow...
It takes anything I feed it - garden waste, branches, leaves, whatever - and not only mulches but pretty much minces it!
The up-and-back design of the hopper makes it so you have to be a real idiot to hurt yourself...
Two tips: Wear ear protection - this puppy is LOUD.
Keep a 1" branch stripped of leaves and little branches if you can. When you're all done, run that stick down the chute - it'll blow straight out of the chute and the machine is cleaned out for next time!
Date published: 2015-09-27
