26-in. 243cc 2-Stage Gas Snow Blower
When winter brings heavy snow, you need to be ready with a machine that can handle it all. The Troy-Bilt two-stage snow blower can handle up to 12-inches of snowfall with a reliable 243cc Troy-Bilt engine that starts at the push of a button. Handle the snow blower easily with enhanced traction from X-Trac tires and a self-propelled all-wheel drive for greater control and versatility in winter conditions.
Documents and Guides
- 243cc Troy-Bilt OHV electric-start engine delivers reliable power in all weather conditions
- 26 in. clearing width with 12 in. serrated steel augers helps break up ice and snow for easier removal
- 15-inch x 5-inch X-trac tires provide strong traction in snowy areas
- 4-Year Limited Warranty/Life on Chute
- Adjust the snow flow with 200° chute rotation
- Reinforced steel housing provides durability and ruggedness for years of use
26-in. 243cc 2-Stage Gas Snow Blower Features
Strong Warranty

Backed by a strong 4-year limited warranty and lifetime polymer chute warranty for peace of mind.
Just One Hand™ Operation
Just One Handâ„¢ operation allows you to lock in your speed and adjust chute controls without disengaging the drive.
Electric Start

Electric start allows you to start the machine with the push of the button, eliminating the need to pull-start a cold engine.
Remote Pitch Control Lever
Remote pitch control lever allows the operator to change the height of snow discharge from the dashboard.
Self-Propelled Drive

Self-propelled drive with choice of six forward and two reverse speeds.
Powerful,
Dependable Engine

Troy-Bilt engines deliver reliable power and are tested to ensure dependable starting in all weather conditions.
In-Dash Headlight
In-dash headlight provides improved visibility in low-light conditions.
Overhead Crank Chute Control

Overhead crank chute control allows you to easily adjust the direction of snow discharge from the operator area so it’s thrown where you want it.

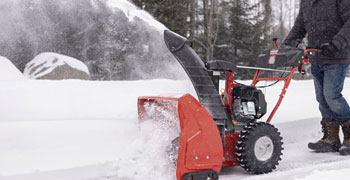

Minimal Snow Blowback

Extended chute design minimizes blowback of snow discharge on the operator.
Two-Stage Technology

Two-stage technology with serrated steel augers and impeller plows through deeper, heavier snow faster than a single-stage snow blower.
Heated Hand Grips
Heated grips provide extra comfort in cold weather.
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Displacement 243cc
- Starter Type Push Button Electric Start / Pull Start
- Fuel Tank Capacity 2 quarts US/ 1.9 L
- Engine Oil Capacity 20 oz
Drive System
- Drive System All-wheel drive
Warranty
- Warranty 4-Year limited warranty/ lifetime warranty on chute
Controls
- Handle Grip(s) Standard
- Pitch Control Remote
- Chute Rotation 200 degrees
- Chute Control OVH Crank with Remote Tilt
- Single-Hand Operation Standard / clutch lock
- Steering Control Standard Steering
- Drive Type Self-Propelled
- Operator Control Just One Hand®
Power and Performance
- Clearing Width 26"
- Intake Height 21"
- Number of Stages 2
Dimensions
- Weight (approx.) 210lbs
- Auger Diameter 12"
- Impeller Diameter 12"
Additional Specifications
- Headlight(s) In-dash headlight
- Shave Plate Steel
- Skid Shoes Deluxe polymer
- Drift Cutters None
- Chute Material Polymer
- Recommended Oil Type 5W-30 (Included)
- Model Number 31AM6CP3563
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
---|---|---|---|
31AM6CP3563 | MANL:OPER:BILING:179/208/272/2 | ||
MANL:OPER:BILING:179/208/272/2 | 769-25211 | Download | |
MANL:OPER:BILING:31X:5X/6X/8X: | 769-24536 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
SHEET:SUPP:WARR/PARTS:TROY 5XX | 769-22296 | Download |
