Super Bronco 50 XP Riding Lawn Mower
- Large 50-in reinforced fabricated steel deck for rugged performance and enhanced durability
- Built In America with U.S and Global Parts since 1937
- Powerful, twin-cylinder Troy-Bilt engine delivers quieter, more balanced performance with less vibration
- Hydrostatic transmission with cruise control for smooth change of speed and direction
- Cast iron front axle for added durability and rugged performance
- Ride with more comfort and support with the adjustable high back seat
Super Bronco 50 XP Riding Lawn Mower Features
Clean, Precise Cut
50-in deck ,with anti-scalp deck wheels to prevent turf damage, delivers a clean, even cut
Cast iron front axle for added durability and rugged performance

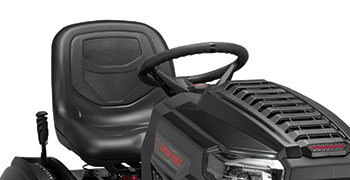

Ride with Comfort
Ride with more comfort and support with the adjustable high back seat
Specs & Maintenance
- Engine Brand Troy-Bilt®
- Engine Displacement 679cc
- Fuel Tank Capacity 3.0 gal.
- Cylinders/Material Twin
- Engine Start Key
- Engine Oil Capacity 2.0 qts.
- Lubrication Fully pressurized
- Charging System 15 amp regulated
- Fuel Gauge Fuel sight window
- Governor Manual
- Choke Separate choke and throttle
- Air Filter Dual element
- Oil Filter Yes
- Battery 12V 230 cold crank amps
- Transmission Foot-pedal hydrostatic
- Forward Speed 5.5 MPH
- Reverse Speed 2.5 MPH
- Rear Axle 3/4" w/dual PM steel drive hubs
- Transmission Housing Cast aluminum
- Transmission Type Tuff Torq K46
- Deck Cutting Width 50"
- Cutting Modes Discharge/mulch/bagging
- Deck Wash Yes
- Deck Material Steel, 11-gauge
- Deck Attach/Removal Removeable
- Deck Engagement (PTO) Electric
- Deck Construction Fabricated
- Spindle Construction Maintenance-free sealed ball bearings
- Blade(s) 3
- Deck Lift Manual
- Cutting Height Range 1.5" - 3.75"
- Anti-Scalping 4 ball, 1 nose
- Deck Positions 12 positions
- Warranty 4-Year limited residential warranty
- Frame Robotically welded
- Front Axle Cast iron
- Turning Radius 16"
- Front Tires 15-in x 6-in
- Rear Tires 20-in x 8-in
- Tire Tread Turf Saver
- Rear Tow Hitch Included
- Corrosion Protection E-coating
- Cruise Control Yes
- Brakes Automotive-style disc
- Steering Control Manual sector and pinion
- Seat Type High-back
- Seat Suspension Seat spring
- Seat Adjustment Lever
- Floor Mats Traction Pad
- Dimensions L/W/H 70”(L) x 60”(W) x 42.5”(H)
- Mulch Kit Optional
- Headlight(s) Standard
- Discharge Chute Included
- Cup Holder Included
- Grass Bag Capacity Optional
- Bagger Optional
- Model Number 13BJA1BZ066
